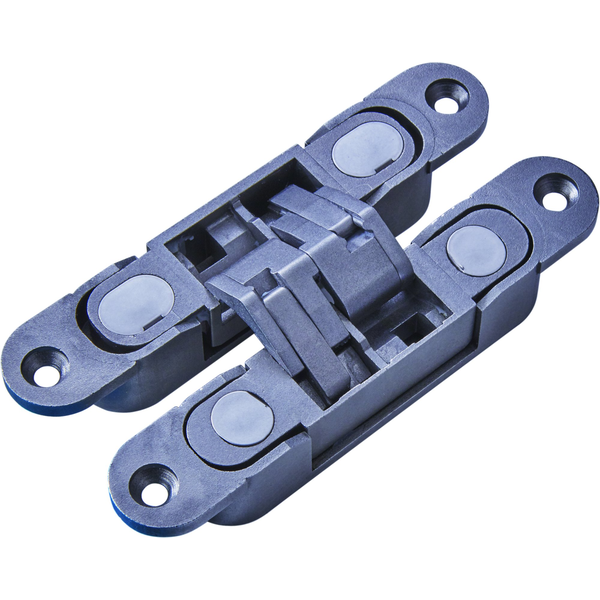

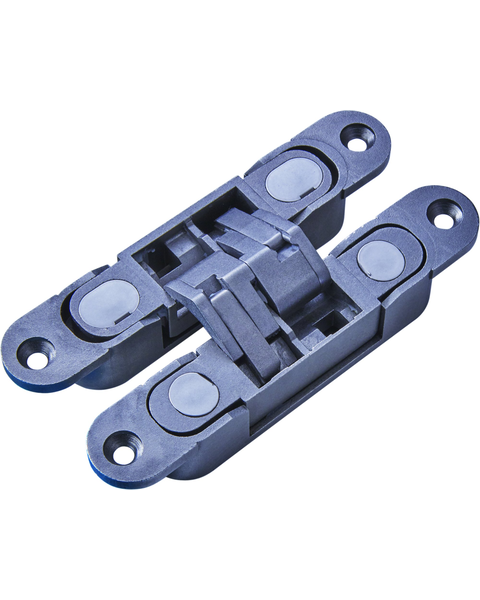

3D Invisible Hinge 134x24mm, Model 1030, Stainless Steel
Product Discontinuation AlertThis item has left our catalog. It's either upgraded to a newer model, didn't meet our high customer satisfaction standards, or the manufacturer said goodbye. But don't worry, CabinetParts is always here with top-notch alternatives.All the product info you could ask for...
-
Size Info
- Size : 134 x 24mm
-
Manufacturer Info
- Manufacturer : Peter Meier
- Manufacturer Part # : C1030SS
- Manufacturer Finish : Stainless Steel
-
Other Important Info
- Product Finish : Steel
- Configuration : single
- Width : 24
- Depth : 21
- Height : 134
- Assembly Required : Yes
- Model Number : 1030
