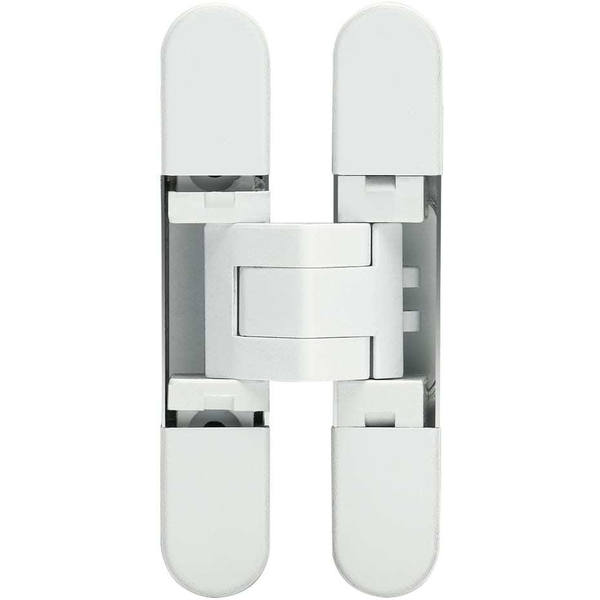

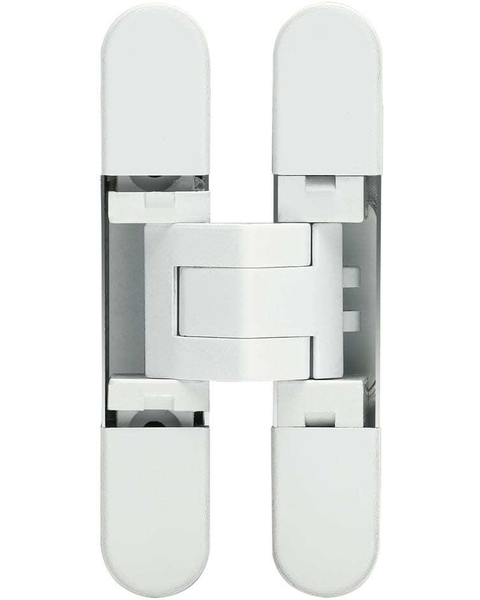

929 Series 3D 3 x 9/16 x 5/8 Inch Invisible Hinge, White
Rating 4.6 | 7 Reviews | Our Item Number PMI-C929WHT
$
17.43 Each
$15.69/ea for 20
$28.21
SAVE 38%
Ends Nov 21
Ends Nov 21
Finish: White
Product Info Country of Origin: Italy, Collection: 929, Series: 929, Product Finish: White, See more product details
Large Project?
Orders $2500+ Qualify for Special Discounts.
Build your item list and get a Quick Quote
view bid cartAll the product info you could ask for...
-
Size Info
- Key Features : Fluid opening 180 Degrees
Easy adjustable in 3 Dimensional with one simple tool
Complete reversibility due to perfect symmetry between the 2 sides of the hinge
Elegant minimalist design with various finishes and no visible screws
Tested for a minimum of 200,000 opening cycles
Hinges are sold individually (Per Hinge)
Screws not included with this model and are to be provided by the installer - Size : 3 x 9/16 x 5/8 Inch (76 x 14 x 15 mm)
- Minimum Door Thickness : 11/16 Inch (18 mm)
- Range of Reversibility : 11/16 - 13/16 Inch (18 - 21 mm)
-
Manufacturer Info
- Manufacturer : Peter Meier
- Manufacturer Part # : C929WHT
- Manufacturer Finish : White
-
Other Important Info
- Product Type : 3D Invisible Hinge
- Country of Origin : Italy
- Collection : 929
- Technology : 3D Concealed Hinge
- Series : 929
- Material : Zinc and Fiberglass
- Product Finish : White
- Load Rating : 26 lbs (2 hinge), 35 lbs (3 hinge)
