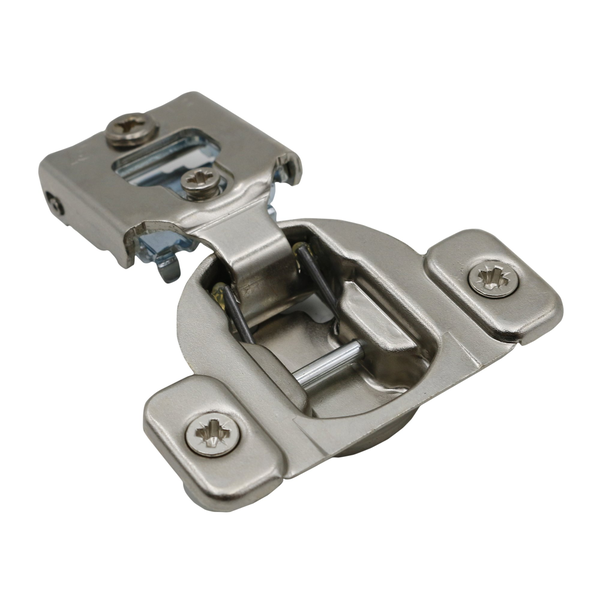

Compact 38N Hinge and Mounting Plate 1/2 inch Overlay
Rating 4.5 | 44 Reviews | Our Item Number BH38N3580.08
The ideal solution for face frame construction, COMPACT hinges are specifically designed to offer makers of face frame cabinetry the advantage of concealed hinges.
$
1.90 Each
$1.20/ea for 250
$2.71
SAVE 30%
Ends Jun 30
Ends Jun 30
Product Info Bore Diameter: 35MM, Cup Depth: 7/16", Overlay: 1/2 Inch, Degree of Opening: 105, Material: Steel, See more product details
or
Packs ™Save more! Buy a Pro Pack.
Large Project?
Orders $2500+ Qualify for Special Discounts.
Build your item list and get a Quick Quote
view bid cartAll the product info you could ask for...
-
Size Info
- Bore Diameter : 35MM
- Cup Depth : 7/16"
- Overlay : 1/2 Inch
-
Manufacturer Info
- Manufacturer Part # : 38N358C.08
- Manufacturer : Blum
-
Other Important Info
- Cabinet Application : Face Frame
- Degree of Opening : 105
- Material : Steel
- Mounting Type : Dowel
- Includes : (1) Hinge & Mounting Plate Assembly
- Product Finish : Nickel Plated
- Product Type : Hinge & Plate: European Face Frame
- Closing Type : Self Closing
- Installation Note : Includes dowels for 3-hole pre-bore; remove for screw-on. #6 × 5/8" flat-head screws required.
