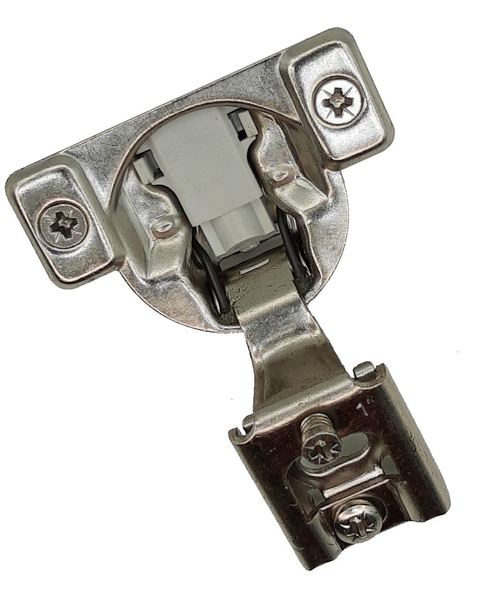

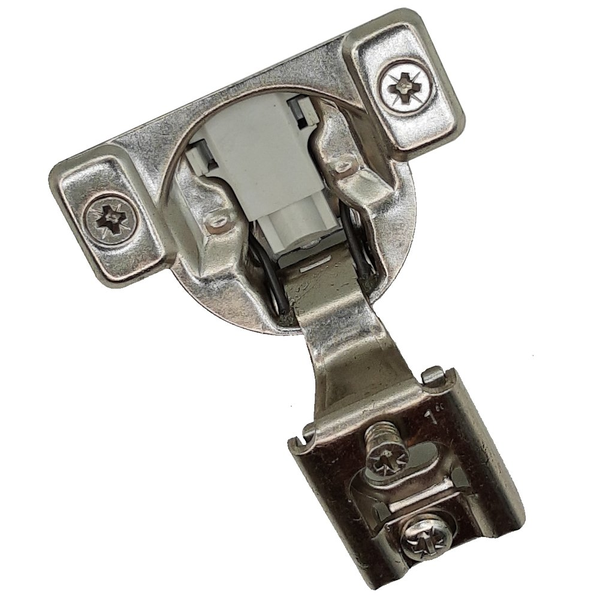

Builders Line Compact Hinge, 1 inch Overlay with Dowels, Soft-Close, 4 Way 2 Cam Adjustable, Face-Frame
Rating 4.6 | 144 Reviews | Our Item Number BLD-CPCT-100-D-SC
The Builder Economy Line - When you need a hinge at a crazy low price.
$
2.77
$2.49/ea for 200
$5.22
SAVE 47%
Ends Sep 19
Ends Sep 19
Overlay:
Closing Type:
Mounting Type:
Product Info Bore Diameter: 35MM, Cup Depth: 7/16", Overlay: 1", Closing Type: Soft Close, Degree of Opening: 105, See more product details
or
Packs ™Save more! Buy a Pro Pack.
Large Project?
Orders $2500+ Qualify for Special Discounts.
Build your item list and get a Quick Quote
view bid cartAll the product info you could ask for...
-
Size Info
- Bore Diameter : 35MM
- Cup Depth : 7/16"
- Overlay : 1"
-
Manufacturer Info
- Manufacturer : The Builder Economy Line
- Manufacturer Part # : BLD-CPCT-100-D-SC
-
Other Important Info
- Closing Type : Soft Close
- Degree of Opening : 105
- Material : Steel
- Mounting Type : Dowel
- Product Finish : Nickel Plated
- Product Type : Hinge & Plate: European Face Frame
- Includes : (1) Hinge & Plate Assembly
- Cabinet Application : Face Frame
- Comparible Other Hinges : Blum: BH39C358B.16
- Cup Version : Universal (Blum Pattern)
- Installation Note : Includes dowels for 3-hole pre-bore; remove for screw-on. #6 × 5/8" flat-head screws required.
Manufacturer Resources
