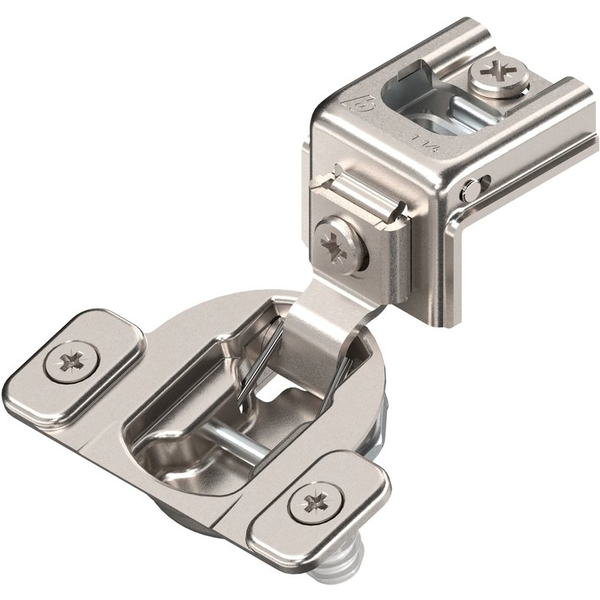

Blum Compact Self Closing 1-1/4" Overlay Dowel & Screw-On Hinge, for Face Frame Construction, 107 Degree Opening Angle
The Blum COMPACT Series hinges are a one piece hinge, specifically designed for face frame cabinets.
Ends Nov 12
Large Project?
Orders $2500+ Qualify for Special Discounts.
Build your item list and get a Quick Quote
view bid cartAll the product info you could ask for...
-
Size Info
- Cup Depth : 7/16 Inch
- Overlay : 1-1/4 Inch
- Side Adjustment : ±1/16 Inch side adjustment
- Height Adjustment : ±1/8 Inch height adjustment
- Cam Height Adjustmentz : +3/32 Inch, -1/32 Inch cam depth adjustment
-
Manufacturer Info
- Manufacturer : Blum
- Manufacturer Part # : 38C358C.20
- Manufacturer Finish : Nickel Plated
-
Other Important Info
- Product Type : Hinge
- Blum ID Number : 26224413
- Key Features : One piece assembly
- Series : Compact
- For Use With : COMPACT 38C press-in for full overlay
- Product Finish : Nickel
- Material : Steel
- Mounting : Wraparound mount
- Mounting Type : Press-in
- Degree of Opening : 107 Degrees
- Close Type : Self-close
- Installation Note : Includes dowels for 3-hole pre-bore; remove for screw-on. #6 × 5/8" flat-head screws required.
