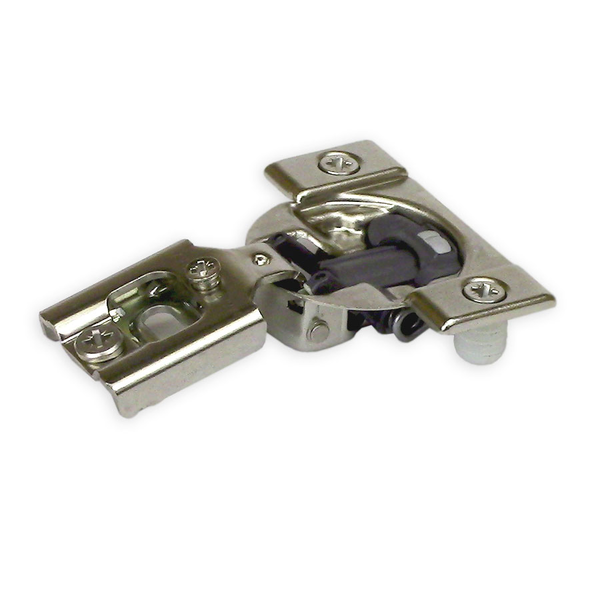

Compact 38N Soft-Close 5/8" Overlay Face-Frame Hinge with Dowels, 105-Degree Opening Angle, Pan-Head Screw Cabinet Mounting
Rating 4.7 | 592 Reviews | Our Item Number BH38N358B.10
$
4.30
$2.69/ea for 250
$4.83
SAVE 11%
Ends Oct 07
Ends Oct 07
Closing Type:
Overlay:
Product Info Bore Diameter: 35MM, Cup Depth: 7/16", Overlay: 5/8", Closing Type: Soft Closing, Degree of Opening: 105, See more product details
or
Packs ™Save more! Buy a Pro Pack.
Large Project?
Orders $2500+ Qualify for Special Discounts.
Build your item list and get a Quick Quote
view bid cartAll the product info you could ask for...
-
Size Info
- Bore Diameter : 35MM
- Cup Depth : 7/16"
- Overlay : 5/8"
-
Manufacturer Info
- Manufacturer : Blum
- Manufacturer Part # : 38N358B.10
-
Other Important Info
- Cabinet Application : Face Frame
- Closing Type : Soft Closing
- Degree of Opening : 105
- Material : Steel
- Mounting Type : Dowel
- Product Finish : Nickel Plated
- Product Type : Hinge & Plate: European Face Frame
- Includes : (1) Hinge & Plate Assembly
- Installation Note : Includes dowels for 3-hole pre-bore; remove for screw-on. #6 × 5/8" flat-head screws required.
Manufacturer Resources
How to Measure Your Cabinet Door Overlay
How to Install Blum Compact 38 & 39 Hinges Add-on Accessories
-
![Blumotion 1/16" (1.59mm)Thickness Hinge Cup Depth Spacer, Light Gray Nylon](https://cdn-media.cabinetparts.com/primary_product.jpg?id=6588&p=sq-sm "Blumotion 1/16" (1.59mm)Thickness Hinge Cup Depth Spacer, Light Gray Nylon")
Blumotion 1/16" (1.59mm)Thickness Hinge Cup Depth Spacer, Light Gray Nylon
Compact Blumotion 38N Blank Cover Cap For Partial Overlay
Blum 86 degree Restriction Clip for Compact Hinges
Compact /Clip Top Hinge Blank Cover Cap For Compact 155 Degree Zero Protrusion Hinges
Blum 86 Degree Restriction Clip for Clip top Frameless Hinges Other - 105 Degree Face Frame European Cabinet Hinges
-
![Compact 38N Soft-Close 1/2" Overlay Face-Frame Hinge, 105-Degree Opening Angle, Pan-Head Screw Mounting](https://cdn-media.cabinetparts.com/primary_product.jpg?id=6597&p=sq-sm "Compact 38N Soft-Close 1/2" Overlay Face-Frame Hinge, 105-Degree Opening Angle, Pan-Head Screw Mounting")
Compact 38N Soft-Close 1/2" Overlay Face-Frame Hinge, 105-Degree Opening Angle, Pan-Head Screw Mounting
Compact 38N Soft-Close 3/4 Inch Overlay Face-Frame Hinge, 105-Degree Opening Angle, Pan-Head Screw Cabinet Mounting ![Compact 38N Soft-Close 5/8" Overlay Face-Frame Hinge, 105-Degree Opening Angle, Pan-Head Screw Mounting](https://cdn-media.cabinetparts.com/primary_product.jpg?id=6598&p=sq-sm "Compact 38N Soft-Close 5/8" Overlay Face-Frame Hinge, 105-Degree Opening Angle, Pan-Head Screw Mounting")
Compact 38N Soft-Close 5/8" Overlay Face-Frame Hinge, 105-Degree Opening Angle, Pan-Head Screw Mounting ![Compact 38N Soft-Close 3/8" Overlay Face-Frame Hinge, 105-Degree Opening Angle, Pan-Head Screw Mounting](https://cdn-media.cabinetparts.com/primary_product.jpg?id=6596&p=sq-sm "Compact 38N Soft-Close 3/8" Overlay Face-Frame Hinge, 105-Degree Opening Angle, Pan-Head Screw Mounting")
Compact 38N Soft-Close 3/8" Overlay Face-Frame Hinge, 105-Degree Opening Angle, Pan-Head Screw Mounting
Builders Line Compact Hinge, 1/2 inch Overlay Screw-On, Soft-Close, 4 Way 2 Cam Adjustable, Face-Frame
Compact Blumotion 38N 1/2 Inch Overlay Soft Close Face Frame Hinge/Plate, Screw-On and Dowel Installation ![Compact 38N Soft-Close 5/16" Overlay Face-Frame Hinge with Dowels, 105-Degree Opening Angle, Pan-Head Screw Cabinet Mounting](https://cdn-media.cabinetparts.com/primary_product.jpg?id=6605&p=sq-sm "Compact 38N Soft-Close 5/16" Overlay Face-Frame Hinge with Dowels, 105-Degree Opening Angle, Pan-Head Screw Cabinet Mounting")
Compact 38N Soft-Close 5/16" Overlay Face-Frame Hinge with Dowels, 105-Degree Opening Angle, Pan-Head Screw Cabinet Mounting
Compact Blumotion 38N 3/4 Inch Overlay Soft Close Face Frame Hinge/Plate, Screw-On and Dowel Installation
Compact 38N 1/2 Inch Overlay Self-Close Face Frame Hinge/Plate, Screw-On Installation (Dowels Not Included)
Builders Line Compact Hinge, 1-1/4 inch Overlay Screw-On, Soft-Close, 4 Way 2 Cam Adjustable, Face-Frame
Compact 38N Soft-Close 3/8 Inch Overlay Face-Frame Hinge with Dowels, 105-Degree Opening Angle, Pan-Head Screw Cabinet Mounting
Builders Line Compact Hinge, 3/4 inch Overlay Screw-On, Soft-Close, 4 Way 2 Cam Adjustable, Face-Frame ![Blum Compact Self Closing 1-1/4" Overlay Screw-On Hinge,for Face Frame Construction, 107 Degree Opening Angle](https://cdn-media.cabinetparts.com/primary_product.jpg?id=131814&p=sq-sm "Blum Compact Self Closing 1-1/4" Overlay Screw-On Hinge,for Face Frame Construction, 107 Degree Opening Angle")
Blum Compact Self Closing 1-1/4" Overlay Screw-On Hinge,for Face Frame Construction, 107 Degree Opening Angle
Compact 38N 3/4 Inch Overlay Self-Close Face Frame Hinge/Plate, Screw-On Installation ![Blum Compact Self Closing 1-1/4" Overlay Dowel & Screw-On Hinge, for Face Frame Construction, 107 Degree Opening Angle](https://cdn-media.cabinetparts.com/primary_product.jpg?id=131817&p=sq-sm "Blum Compact Self Closing 1-1/4" Overlay Dowel & Screw-On Hinge, for Face Frame Construction, 107 Degree Opening Angle")
Blum Compact Self Closing 1-1/4" Overlay Dowel & Screw-On Hinge, for Face Frame Construction, 107 Degree Opening Angle
Compact 38C 5/8 Inch Overlay Self-Close Face Frame Hinge/Plate, Screw-On Installation ![Compact 38N Soft-Close 5/8" Overlay Face-Frame Hinge with Dowels, 105-Degree Opening Angle, Pan-Head Screw Cabinet Mounting](https://cdn-media.cabinetparts.com/primary_product.jpg?id=6608&p=sq-sm "Compact 38N Soft-Close 5/8" Overlay Face-Frame Hinge with Dowels, 105-Degree Opening Angle, Pan-Head Screw Cabinet Mounting")
Compact 38N Soft-Close 5/8" Overlay Face-Frame Hinge with Dowels, 105-Degree Opening Angle, Pan-Head Screw Cabinet Mounting
Builders Line Compact Hinge, 1/2 inch Overlay with Dowels, Soft-Close, 4 Way 2 Cam Adjustable, Face-Frame
Compact 38N Hinge and Mounting Plate 1/2 inch Overlay
Compact 38N 3/8 Inch Overlay Self-Close Face Frame Hinge/Plate, Screw-On Installation ![Compact 38N Soft-Close 7/16" Overlay Face-Frame Hinge with Dowels, 105-Degree Opening Angle, Pan-Head Screw Cabinet Mounting](https://cdn-media.cabinetparts.com/primary_product.jpg?id=6601&p=sq-sm "Compact 38N Soft-Close 7/16" Overlay Face-Frame Hinge with Dowels, 105-Degree Opening Angle, Pan-Head Screw Cabinet Mounting")
Compact 38N Soft-Close 7/16" Overlay Face-Frame Hinge with Dowels, 105-Degree Opening Angle, Pan-Head Screw Cabinet Mounting
Builders Line Compact Hinge, 1/2 inch Overlay Screw-On, 4 Way 2 Cam Adjustable, Face-Frame
Compact 38N Hinge and Mounting Plate 3/4 inch Overlay with Dowel
Builders Line Compact Hinge, 1 inch Overlay with Dowels, 4 Way 2 Cam Adjustable, Face-Frame
Compact 38N Hinge and Mounting Plate 3/8 inch Overlay with Dowel
Builders Line Compact Hinge, 1 inch Overlay with Dowels, Soft-Close, 4 Way 2 Cam Adjustable, Face-Frame
Builders Line Compact Hinge, 1-1/4 inch Overlay with Dowels, Soft-Close, 4 Way 2 Cam Adjustable, Face-Frame
Large Overlay Compact Clip Cover Caps, Deep Gray
Builders Line Compact Hinge, 3/4 inch Overlay with Dowels, Soft-Close, 4 Way 2 Cam Adjustable, Face-Frame
Compact 38N Hinge and Mounting Plate 5/8 inch Overlay with Dowel
Builders Line Compact Hinge, 1/2 inch Overlay with Dowels, 4 Way 2 Cam Adjustable, Face-Frame
Builders Line Compact Hinge, 3/4 inch Overlay Screw-On, 4 Way 2 Cam Adjustable, Face-Frame
Builders Line Compact Hinge, 1-1/4 inch Overlay with Dowels, 4 Way 2 Cam Adjustable, Face-Frame
Builders Line Compact Hinge, 3/4 inch Overlay with Dowels, 4 Way 2 Cam Adjustable, Face-Frame
Builders Line Compact Hinge, 1-1/4 inch Overlay Screw-On, 4 Way 2 Cam Adjustable, Face-Frame
Nylon Cover Cap for 30C Compact Clip Hinge, Dark Gray
Tec 831 Face Frame Hinge 105 Degree
Tec 831 Face Frame Hinge with Dowel 105 Degree
Full 3/4” (19mm) Overlay, 6-Way Adjustable Soft Close Concealed Hinge, (Screws, Frameless Mounting Plate and Face Frame Adapter Sold Separately)
