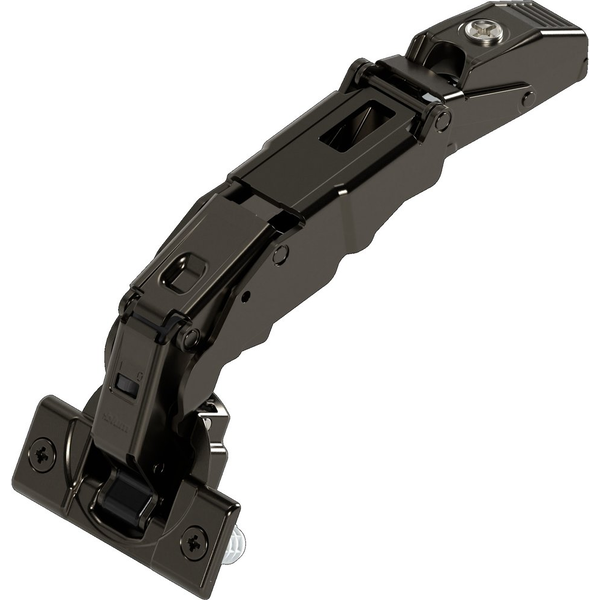

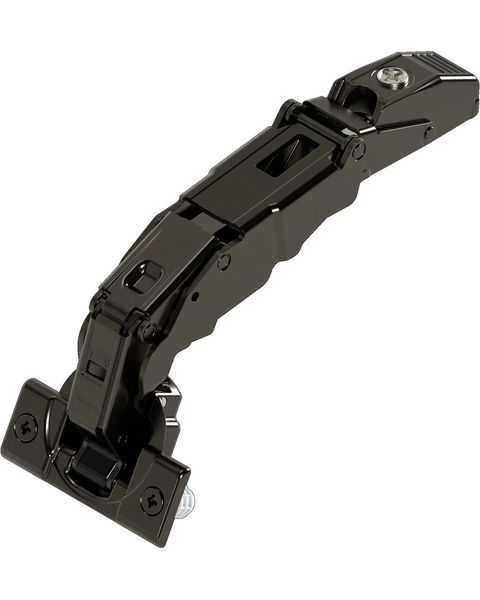

CLIP Top BLUMOTION Soft Close 155 Degree Opening Full Overlay Zero Protrusion Hinge, Dowel Mounting, Black Onyx

  Rating 4.7 | 2,718 Reviews in the past 24 months | Our Item Number BH71B7580BLK

Silent and effortless, that's how cabinet doors close with CLIP top BLUMOTION hinges, regardless of the weight or closing speed.

$
11.81 Each
$14.76
SAVE 20%
Ends Nov 12
Product Info Side Adjustment: (+/-2mm), Screw Hole Distance: 45 mm, Product Finish: Black, Material: Steel, Closing Type: Soft Close, See more product details
Helpful Tip TIP: HINGES ARE COMPLICATED: Use our FREE TOOL to buy the correct hinge and mounting plate. Start Now
Qty:       Each


Large Project?

Orders $2500+ Qualify for Special Discounts.

Build your item list and get a Quick Quote

view bid cart
Compare this item

All the product info you could ask for...

  • Size Info

  • Side Adjustment : (+/-2mm)
  • Height Adjustment : (+/- 2mm)
  • Depth Adjustment : (+3mm, -2mm)
  • Hinge Cup Boring Diameter : 35 mm
  • Hinge Cup Drilling Depth : 11.7 mm
  • Screw Hole Distance : 45 mm

  • Manufacturer Info

  • Manufacturer : Blum
  • Manufacturer Part # : 71B7580
  • Manufacturer Finish : Black Onyx

  • Other Important Info

  • Product Type : Long Arm Hinge
  • Product Finish : Black
  • Material : Steel
  • Closing Type : Soft Close
  • Fixing Type : Press-in
  • Overlay : Full Overlay
  • Hinge Type : CLIP Top
  • Key Features : Straight-arm
    Zero protrusion hinge for thicker doors
  • Opening Angle : 155 Degrees
  • Closing Mechanism : With Spring
  • Base Plate : Long Arm
  • Cabinet Type : Face Frame, Frameless

  • Manufacturer Resources

Back to Top
back to top

Our customers say Blum products...

  4.7 out of 5
based on 2718 ratings

"These reviews are from our customers who have purchased Blum products."
  • 5 of 5 Perfect replacement hinge November 9th, 2026
    by David from READING, PA

    The hinges were exact replacement item. 2 minute repair. Easy transaction- highly recommend!

    This review is about similar Blum Hinges. (BH79T8500)

    Was this review helpful? yes no

  • 4 of 5 For kitchen cabinets November 6th, 2026
    by Dalit from Los Altos, CA

    These hinges work great but look very bulky. I used them in my cabinetry kitchen and wish there would be a more aesthetic option.

    This review is about similar Blum Hinges. (BH71B7550)

    Was this review helpful? yes no

  • 2 of 5 Disappointed with these hinges November 4th, 2026
    by Mark from Land O Lakes, FL

    The hinges were listed as " full overlay", however when I tried to adjust them more than 5/8" the mechanism hits the side of the cabinet frame. If you adjust it any further the mechanism binds and the door will not close. I had to cut a small notch 1/8" deep behind each hinge in order to be able to adjust them to the full 3/4"

    This review is about similar Blum Hinges. (BH70M2550)

    Was this review helpful? yes no

  • 5 of 5 Great for Inset Doors November 4th, 2026
    by Bill from Birmingham, AL

    I have used this hinge with the recommended clip many times for installing inset hinges. It is a perfect fit for that application. I keep a box of them in my shop all the time.

    This review is about similar Blum Hinges. (BH71B3750)

    Was this review helpful? yes no

  • 5 of 5 perfect match October 23rd, 2026
    by Dave from Fairfax Station, VA

    cabinetparts found the prefect replacement for a 25 year old hinge that took only minutes to replace!

    This review is about similar Blum Hinges. (BH79T8500)

    Was this review helpful? yes no

See More Reviews

Reviews about us...

  • 5 of 5 | November 7th, 2026

    Glides are great and the purchase experience was straight forward!

  • 5 of 5 | November 7th, 2026

    I needed some help on my cabinets with hinges. Sherry was there every step of the way. Fantastic service!

  • 5 of 5 | November 6th, 2026

    Had the products and delivered quickly

  • 5 of 5 | November 6th, 2026

    Attractive and solidly made back plates in brushed nickel finish. They fit perfectly and don’t show finger marks.

  • 5 of 5 | November 5th, 2026

    I purchased 32 cabinet hinges from cabinetparts.com a couple of weeks ago. It was a very reasonable price, they delivered them to my doorstep in a few days, and I installed them all; very happy! I would use them again in the future. Tom

See More Reviews
