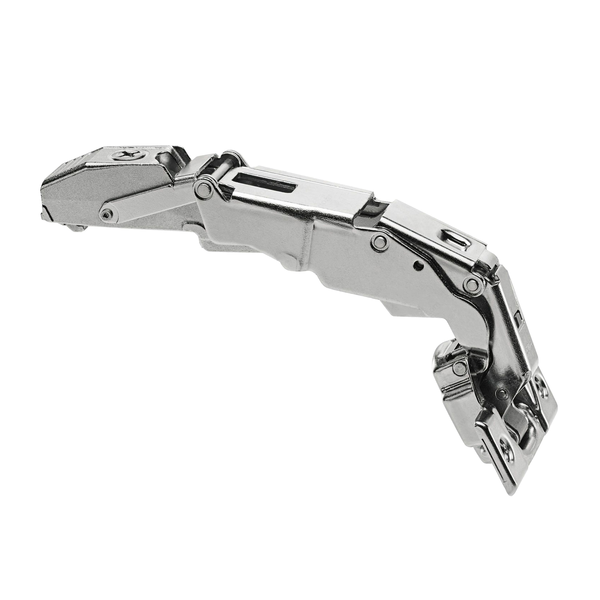

Clip-Top BLUMOTION Zero Protrusion Full Overlay Soft-Close 155 Degree Opening Hinge for Screw Installation, Nickel
155 degrees hinge perfect for cabinets with roll-out trays. This hinge is the replacement for the 71T7500N, B71T7500N
Ends Oct 07
Save more! Buy a Pro Pack.
Large Project?
Orders $2500+ Qualify for Special Discounts.
Build your item list and get a Quick Quote
view bid cartAll the product info you could ask for...
-
Size Info
- Screw Hole Distance : 45mm
- Hinge Cup Drilling Depth : 11.7 mm
- Hinge Cup Boring Diameter : 35 mm
- Side Adjustment : (+/- 2mm)
- Height Adjustment : (+/- 2mm)
- Depth Adjustment : (+ 3mm, - 2mm)
-
Manufacturer Info
- Manufacturer : Blum
- Manufacturer Part # : 71B7550
-
Other Important Info
- Overlay : Special Application
- Product Type : Long Arm Hinge
- Weight : .15 lbs
- Attachment Type : Screw-on
- Finish : Nickel plated
- Opening Angle : 155 Degrees
- Closing Type : Soft Close
- Hinge Type : Clip Top
- Fixing Type : Screw On
- Base Plate : Long Arm
- Cabinet Type : Face Frame, Frameless
Manufacturer Resources
If Measured Overlay is 16-17MM (5/8"-11/16") use these Mounting Plates for Frameless Applications
If Measured Overlay is 13MM (1/2") use these Mounting Plates for Frameless Applications
Installation Hardware
If Measured Overlay is 10MM (3/8") use these Mounting Plates for Frameless Applications
If Measured Overlay is 16MM (5/8") use these Mounting Plates for Face Frame Applications
If Measured Overlay is 13MM (1/2") use these Mounting Plates for Face Frame Applications
If Measured Overlay is 11.5MM (7/16") use these Mounting Plates for Face Frame Applications
If Measured Overlay is 10MM (3/8") use these Mounting Plates for Face Frame Applications
Other - Clip Top European Hinges by Blum
