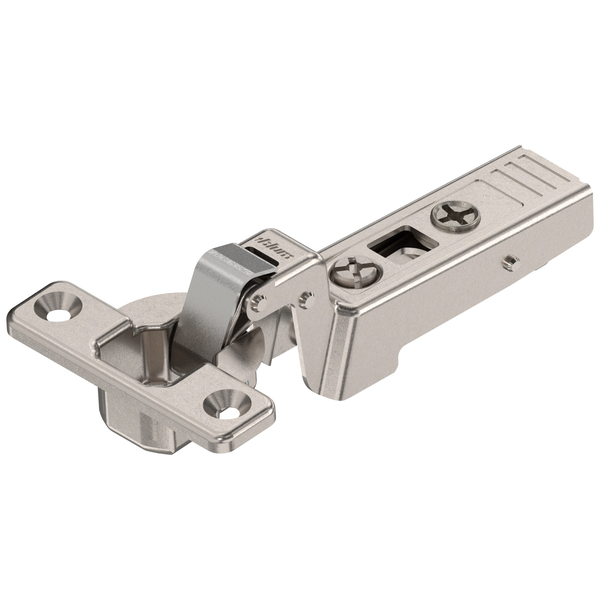

Cliptop 94 Degree Mini Hinge Inset / Self-Closing
This mini hinge is perfect in applications with small doors, or doors with small frames.
Ends Aug 05
Degree of Opening / Overlay:
Mounting Type / Closing Type:
Save more! Buy a Pro Pack.
Large Project?
Orders $2500+ Qualify for Special Discounts.
Build your item list and get a Quick Quote
view bid cartAll the product info you could ask for...
-
Size Info
- Cup Depth : 1/2"
- Bore Diameter : 26MM
- Installation Note : Set back mounting plate screw-on position by door thickness +1.5 mm.
-
Manufacturer Info
- Manufacturer Part # : 71T0750
- Manufacturer : Blum
-
Other Important Info
- Degree of Opening / Overlay : 94 Degree / Inset
- Includes : (1) Hinge. Mounting screws sold separately
- Mounting Type / Closing Type : Screw On / Self Closing
- Material : Steel
- Mounting Type : Screw On
- Overlay : Inset
- Degree of Opening : 94
- Product Type : Long Arm Hinge
- Cabinet Application : Frameless
- Product Finish : Nickel Plated
- Closing Type : Self Closing
Manufacturer Resources
-
Helpful Videos
-
How to Measure Your Cabinet Door Overlay -
Clip Top Hinge -
Inserta Hinge -
How to adjust your frame-less cabinet hinge -
How to Install and Adjust a Blum Cliptop Hinge
If door is flush with Cabinet Box or Frame use these Mounting Plates for Frameless Inset Applications
