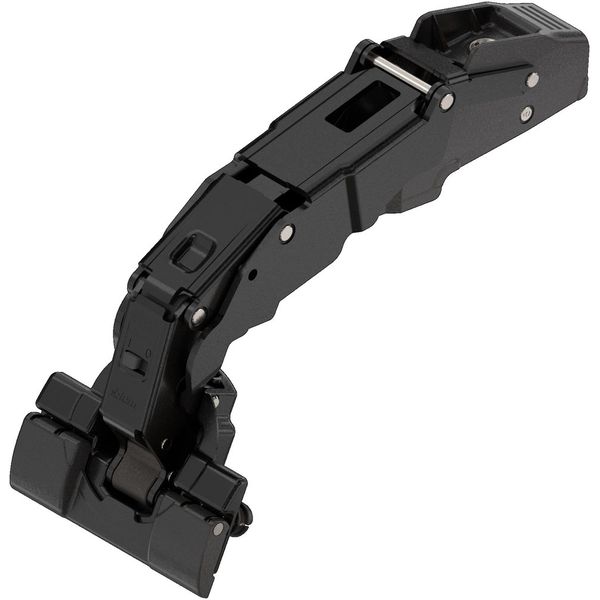

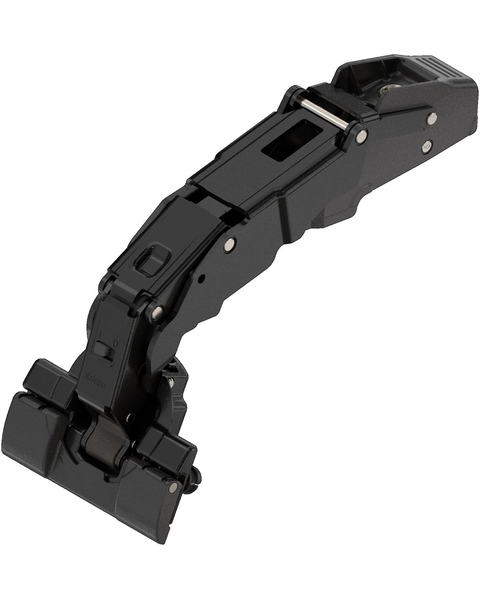

CLIP Top BLUMOTION Soft Close 155 Degree Opening Half Overlay Zero Protrusion Hinge, Inserta Tool-Free Mounting, Black Onyx

  Rating 4.7 | 2,718 Reviews in the past 24 months | Our Item Number BH71B7690BLK

Silent and effortless, that's how cabinet doors close with CLIP top BLUMOTION hinges, regardless of the weight or closing speed.

$
15.82 Each
$19.78
SAVE 20%
Ends Nov 21
Product Info Side Adjustment: (+/-2mm), Screw Hole Distance: 45 mm, Product Finish: Black, Material: Steel, Closing Type: Soft Close, See more product details
Helpful Tip TIP: HINGES ARE COMPLICATED: Use our FREE TOOL to buy the correct hinge and mounting plate. Start Now
Qty:       Each


Large Project?

Orders $2500+ Qualify for Special Discounts.

Build your item list and get a Quick Quote

view bid cart
Compare this item

All the product info you could ask for...

  • Size Info

  • Side Adjustment : (+/-2mm)
  • Height Adjustment : (+/- 2mm)
  • Depth Adjustment : (+3mm, -2mm)
  • Hinge Cup Boring Diameter : 35 mm
  • Hinge Cup Drilling Depth : 11.7 mm
  • Screw Hole Distance : 45 mm

  • Manufacturer Info

  • Manufacturer : Blum
  • Manufacturer Part # : 71B7690
  • Manufacturer Finish : Black Onyx

  • Other Important Info

  • Product Type : Long Arm Hinge
  • Product Finish : Black
  • Material : Steel
  • Closing Type : Soft Close
  • Fixing Type : INSERTA
  • Overlay : Half Overlay
  • Hinge Type : CLIP Top
  • Key Features : Straight-arm
    Zero protrusion hinge for thicker doors
  • Opening Angle : 155 Degrees
  • Closing Mechanism : With Spring
  • Base Plate : Long Arm
  • Cabinet Type : Face Frame, Frameless

  • Manufacturer Resources
