Hinges European Cabinet Hinges Face Frame European Cabinet Hinges 105 Degree Face Frame European Cabinet Hinges
Loading from Primary Photo

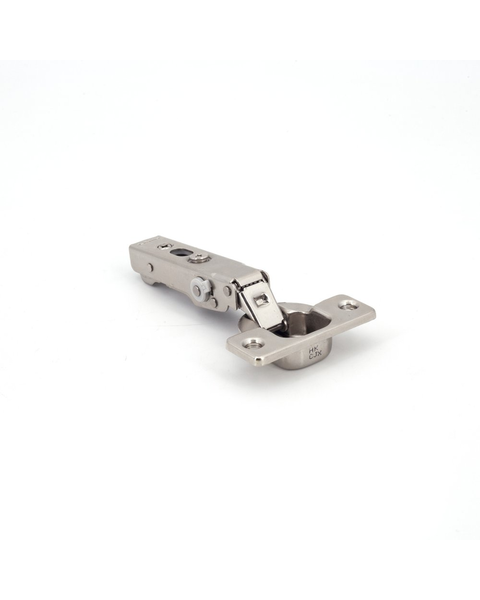

Full 3/4” (19mm) Overlay, 6-Way Adjustable Soft Close Concealed Hinge, (Screws, Frameless Mounting Plate and Face Frame Adapter Sold Separately)

Our Item Number SUG-360-D26-19T-S-RT

Since 1930, Sugatsune has been a trusted source worldwide for developing precision-engineered unique hardware solutions. They carry products to support commercial, marine, and residential applications, including door and industrial cabinet hardware and hinge hardware products.

$
9.78 Each
$11.50
SAVE 15%
Ends Jun 12
Product Info Weight: 0.13 lbs, Material: Steel, Product Finish: Nickel, Closing Type: Soft Close, Opening Angle: 105 Degrees, See more product details
Helpful Tip TIP: HINGES ARE COMPLICATED: Use our FREE TOOL to buy the correct hinge and mounting plate. Start Now
Qty:       Each


Large Project?

Orders $2500+ Qualify for Special Discounts.

Build your item list and get a Quick Quote

view bid cart
Compare this item

All the product info you could ask for...

  • Size Info

  • Maximum Door Width : 23-5/8 Inch (600 mm)
  • Maximum Door Thickness : 13/16 Inch (20 mm)

  • Manufacturer Info

  • Manufacturer : Sugatsune
  • Manufacturer Part # : 360-D26-19T
  • Manufacturer Finish : Nickel

  • Other Important Info

  • Mounting Plate Included : No
  • Key Features : Featuring 5-speed adjustable damper
    Clip on type for easy installation
    3-way adjustment with door installed
    Successfully passed 200,000 cycles test
    Face frame cabinet bracket (FFCB-HG-1) required to install 360 Olympia overlay hinge on face frame cabinets. 1 bracket per hinge needed.
  • Load Capacity : 6 kg (13.2 lbs) / 2 pieces, 10kg (22 lbs) / 3 pieces
  • Product Type : Long Arm Hinge
  • Weight : 0.13 lbs
  • Includes : Hinge (screws and mounting plate sold separately)
  • Material : Steel
  • Product Finish : Nickel
  • Closing Type : Soft Close
  • Opening Angle : 105 Degrees

  • Manufacturer Resources
