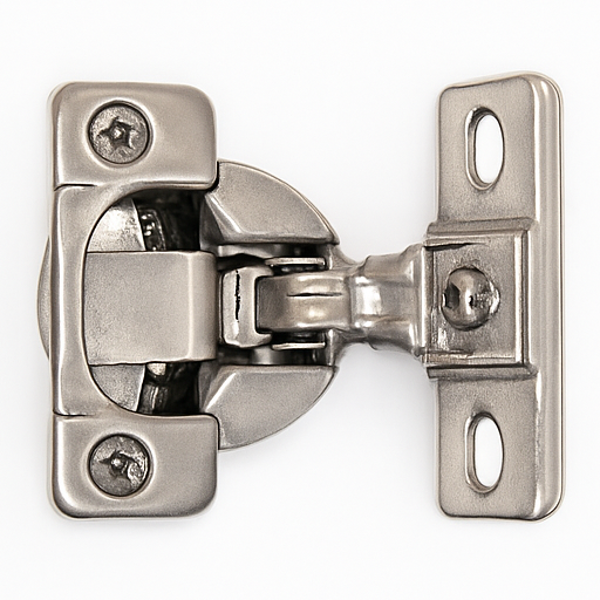

Grass TEC 863 108 Degree Opening Self-Close Variable 1-7/16" Minimum Overlay Face Mount Hinge, Press-in Dowel Mounting, 42 mm Hinge Screw Spacing
Rating 4.6 | 2,423 Reviews | Our Item Number GH-02282-15
The Grass TEC 863 Self-Close Hinge delivers classic functionality with time-tested reliability. Engineered for face frame cabinets, this hinge provides a smooth and consistent closing action without the need for additional soft-close components. With a robust self-closing mechanism and a wraparound design, it ensures long-term durability for high-use environments like kitchens, bathrooms, and utility spaces. The TEC 863 is ideal for those who prefer a traditional self-closing hinge that keeps cabinet doors securely shut while maintaining a clean and professional look. It installs quickly using a 42 mm boring pattern and offers full three-way adjustment for perfect door alignment.
$
3.10 Each
$3.01/ea for 300
$4.43
SAVE 30%
Ends Jul 18
Ends Jul 18
Product Info Overlay: 1-7/16", Hinge Screw Spacing: 42 mm, Cup Drilling Depth: 7/16", Opening Angle: 108 Degrees, Cabinet Type: Face frame, See more product details
or
Packs ™Save more! Buy a Pro Pack.
Large Project?
Orders $2500+ Qualify for Special Discounts.
Build your item list and get a Quick Quote
view bid cartAll the product info you could ask for...
-
Size Info
- Overlay : 1-7/16"
- Hinge Screw Spacing : 42 mm
- Adjustments : 2D: Cam side, height at mounting screws
- Cup Drilling Depth : 7/16"
-
Manufacturer Info
- Manufacturer : Grass
- Manufacturer Part # : 02282-15
-
Other Important Info
- Product Type : Hinge & Plate: European Face Frame
- Opening Angle : 108 Degrees
- Cabinet Type : Face frame
- Key Features : Soft-Close Damper Pre-Mounted
Adjustable Switch
One-Piece Hinge + Base - Collection : TEC
- Closing Type : Self-Close
- Country of Origin : USA
- Mounting Type : Dowelled
- For Door Material : Wood
- Installation Note : Includes dowels for 3-hole pre-bore; remove for screw-on. #6 × 5/8" flat-head screws required.
