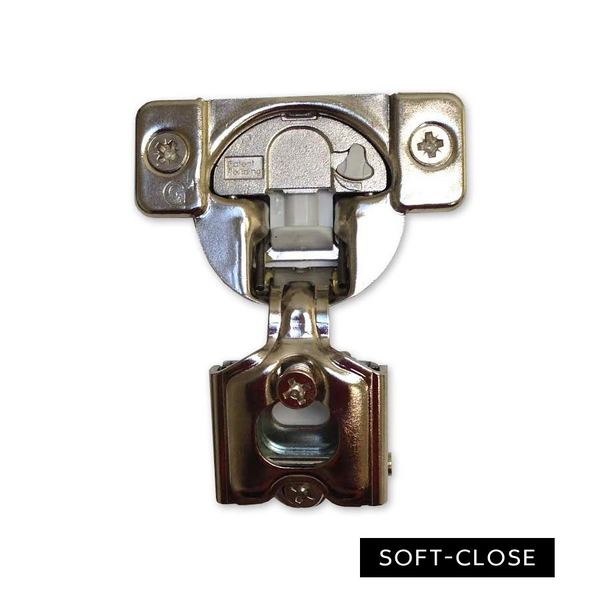

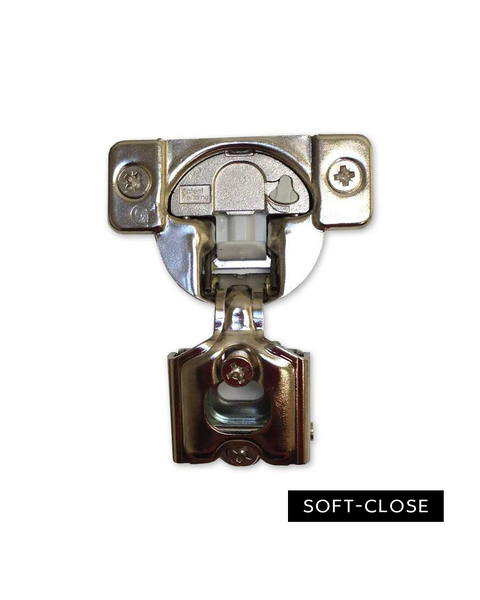

TEC 5/8 Inch Overlay/108-Degree Opening Soft Close Hinge, Wrap Mounted with 45mm Drilling Pattern

  Rating 4.6 | 2,227 Reviews in the past 24 months | Our Item Number GHA01995

The Grass TEC 863 Series hinge is a high-quality option for face frame cabinets, offering durability, smooth operation, and easy installation. As a one-piece compact hinge, it eliminates the need for a separate mounting plate, simplifying installation. However, selecting the correct overlay is crucial for proper fit and door alignment. Unlike older two-piece hinge systems like the Grass 830 Series, where the overlay was determined by the mounting plate, the TEC 863 has a built-in, fixed overlay. Choosing the wrong overlay can lead to misalignment, so it’s important to determine yours before purchasing. You can check your existing hinge’s mounting plate for an engraved fraction (e.g., 1/2", 5/8"), which indicates the overlay, or measure manually by closing the door and measuring from the edge of the door to the edge of the cabinet opening. The TEC 863 features soft-close technology, ensuring a quiet and controlled close every time. With its 108° opening angle, it provides excellent accessibility while maintaining a sleek, modern design. For smooth, reliable performance, the Grass TEC 863 is an excellent choice—just be sure to select the correct overlay for a perfect fit!

$
3.78
$3.67/ea for 300
$5.40
SAVE 30%
Ends Oct 16

Closing Type:

Overlay:

Product Info Bore Diameter: 35MM, Cup Depth: 7/16", Overlay: 5/8", Closing Type: Soft Closing, Degree of Opening: 108, See more product details
Helpful Tip TIP: HINGES ARE COMPLICATED: Use our FREE TOOL to buy the correct hinge and mounting plate. Start Now
Order Qty:
  or
PRO Packs ™
Save more! Buy a Pro Pack.



Large Project?

Orders $2500+ Qualify for Special Discounts.

Build your item list and get a Quick Quote

view bid cart
Compare this item

All the product info you could ask for...

  • Size Info

  • Bore Diameter : 35MM
  • Cup Depth : 7/16"
  • Overlay : 5/8"

  • Manufacturer Info

  • Manufacturer Part # : 01995A-15
  • Manufacturer : Grass

  • Other Important Info

  • Cabinet Application : Face Frame
  • Closing Type : Soft Closing
  • Degree of Opening : 108
  • Material : Metal
  • Mounting Type : Dowel
  • Includes : (1) Hinge & Plate Assembly
  • Product Type : Hinge & Plate: European Face Frame
  • Product Finish : Nickel Plated
  • Installation Note : Includes dowels for 3-hole pre-bore; remove for screw-on. #6 × 5/8" flat-head screws required.
