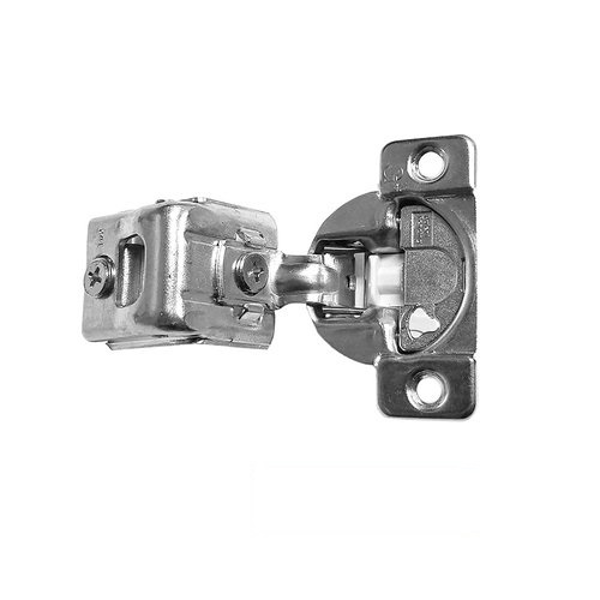

TEC 863- 1-1/4 Inch Overlay/108-Degree Opening Soft Close Hinge, Replaces Grass 830 Series, Wrap Mounted with 42mm Drilling Pattern
The Grass TEC 863 Series hinge is a high-quality option for face frame cabinets, offering durability, smooth operation, and easy installation. As a one-piece compact hinge, it eliminates the need for a separate mounting plate, simplifying installation. However, selecting the correct overlay is crucial for proper fit and door alignment. Unlike older two-piece hinge systems like the Grass 830 Series, where the overlay was determined by the mounting plate, the TEC 863 has a built-in, fixed overlay. Choosing the wrong overlay can lead to misalignment, so it’s important to determine yours before purchasing. You can check your existing hinge’s mounting plate for an engraved fraction (e.g., 1/2", 5/8"), which indicates the overlay, or measure manually by closing the door and measuring from the edge of the door to the edge of the cabinet opening. The TEC 863 features soft-close technology, ensuring a quiet and controlled close every time. With its 108° opening angle, it provides excellent accessibility while maintaining a sleek, modern design. For smooth, reliable performance, the Grass TEC 863 is an excellent choice—just be sure to select the correct overlay for a perfect fit!
Ends Sep 01
Closing Type:
Overlay:
Save more! Buy a Pro Pack.
Large Project?
Orders $2500+ Qualify for Special Discounts.
Build your item list and get a Quick Quote
view bid cartAll the product info you could ask for...
-
Size Info
- Hinge Screw Spacing : 42 mm
- Bore Diameter : 35mm
- Cup Depth : 7/16"
- Overlay : 1-1/4"
-
Manufacturer Info
- Manufacturer Part # : 02838A-15
- Manufacturer : Grass
-
Other Important Info
- Cabinet Application : Face Frame
- Closing Type : Soft Closing
- Degree of Opening : 108
- Material : Metal
- Mounting Type : Dowel
- Product Finish : Nickel Plated
- Product Type : Hinge & Plate: European Face Frame
- Includes : (1) Hinge & Plate Assembly
- Replacement for : **830-33. The two screw holes that fasten the hinge will not line up with your existing screw holes, and new holes will have to be drilled. The hinge and base plate (one piece now) will work fine.
- Installation Note : Includes dowels for 3-hole pre-bore; remove for screw-on. #6 × 5/8" flat-head screws required.
-
Alt Numbers for this Product
- 02838,
Manufacturer Resources
Installation Hardware
Add-on Accessories
Other - 108 Degree Face Frame European Cabinet Hinges
