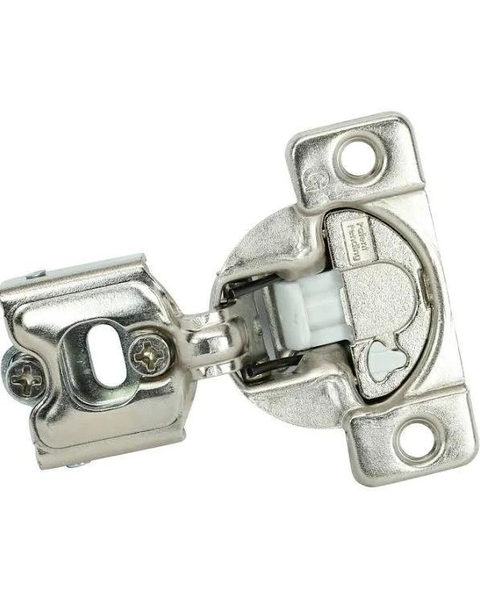

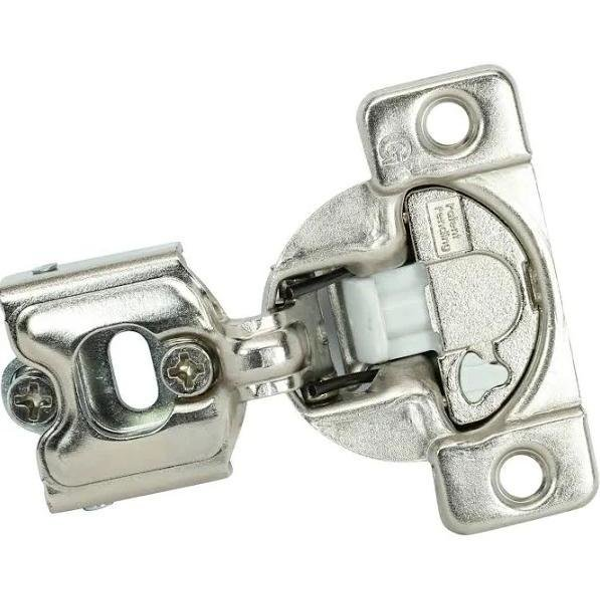

TEC 1/4 Inch Overlay/108-Degree Opening Soft Close Hinge, Wrap Mounted with 45mm Drilling Pattern

  Rating 4.6 | 2,421 Reviews in the past 24 months | Our Item Number GHA04429A-15

The Grass TEC 863 Series hinge is a high-quality option for face frame cabinets, offering durability, smooth operation, and easy installation. As a one-piece compact hinge, it eliminates the need for a separate mounting plate, simplifying installation. However, selecting the correct overlay is crucial for proper fit and door alignment. Unlike older two-piece hinge systems like the Grass 830 Series, where the overlay was determined by the mounting plate, the TEC 863 has a built-in, fixed overlay. Choosing the wrong overlay can lead to misalignment, so it’s important to determine yours before purchasing. You can check your existing hinge’s mounting plate for an engraved fraction (e.g., 1/2", 5/8"), which indicates the overlay, or measure manually by closing the door and measuring from the edge of the door to the edge of the cabinet opening. The TEC 863 features soft-close technology, ensuring a quiet and controlled close every time. With its 108° opening angle, it provides excellent accessibility while maintaining a sleek, modern design. For smooth, reliable performance, the Grass TEC 863 is an excellent choice—just be sure to select the correct overlay for a perfect fit!

$
4.36
$4.23/ea for 300
$6.23
SAVE 30%
Ends Jun 21
Product Info Overlay: 1/4 Inch, Door Clearance: 7/16 Inch, Arm Clearance: 9/16 Inch, Hinge Screw Spacing: 45 mm, Finish: Nickel Plated, See more product details
Helpful Tip TIP: HINGES ARE COMPLICATED: Use our FREE TOOL to buy the correct hinge and mounting plate. Start Now
Qty:
  or
PRO Packs ™
Save more! Buy a Pro Pack.



Large Project?

Orders $2500+ Qualify for Special Discounts.

Build your item list and get a Quick Quote

view bid cart
Compare this item

All the product info you could ask for...

  • Size Info

  • Features : Soft-close damper is pre-mounted in the hinge cup
    Adjustment switch to regulate closing action
    One piece hinge and base plate combination
    3 dimensional adjustment
    7/16 Inch cup drilling depth
    Front locating tabs position hinge on face frame
    Cam side adjustment and Cam depth adjustment
    Height adjustment at mounting screw
    Works with current GRASS insertion machinery
  • Overlay : 1/4 Inch
  • Door Clearance : 7/16 Inch
  • Arm Clearance : 9/16 Inch
  • Hinge Screw Spacing : 45 mm

  • Manufacturer Info

  • Manufacturer : Grass
  • Manufacturer Part # : 04429A-15

  • Other Important Info

  • Product Type : Hinge
  • Finish : Nickel Plated
  • Material : Steel
  • Opening Angle : 108 Degree

  • Manufacturer Resources

Back to Top
back to top

Our customers say Grass products...

  4.6 out of 5
based on 2421 ratings

"These reviews are from our customers who have purchased Grass products."
  • 5 of 5 Great value January 23rd, 2026
    by Reed from Summerville, SC

    Competitively priced, prompt shipping, outstanding customer service. Highly recommend.

    Was this review helpful? yes no

  • 5 of 5 Extremely helpful June 18th, 2025
    by JAMES from Bothell, WA

    The email person was extremely helpful with picking the right hinges.

    Was this review helpful? yes no

  • 3 of 3 people found the following review helpful
    4 of 5 Good hinge November 2nd, 2020
    by Dan from Carleton, MI

    Hinge is what I needed. Easy to find on the website and quick delivery. Not sure how the 1/4” offset is measured. It appears to be from the edge of the cup to the mounting surface of the frame connection. Boring the hole in the door at 1/4” left me with a 1/2” offset on the hinge side and no overlay on the other side. I had to move the boring jig to leave a little less than an 1/8” of wood between the cup and edge of door. It looks good and swings open well.

    Was this review helpful? yes no

  • 1 of 2 people found the following review helpful
    4 of 5 Wonderful products June 8th, 2020
    by James from St Charles, Mo

    The customer service is impeccable and the products I have used and ordered have been great and reliable and reasonable priced. (you get what you pay for)

    Was this review helpful? yes no

  • 5 of 5 Perfect January 23rd, 2024
    by Andrea from Roanoke, VA

    This hinge did exactly what I needed and was easy to install.
