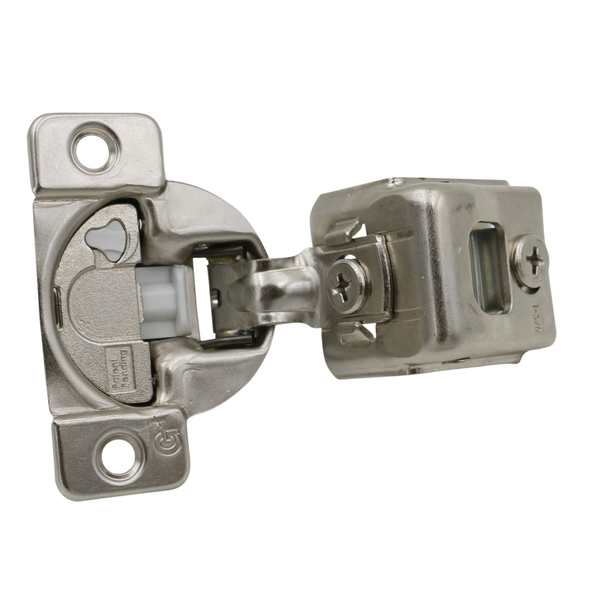

Tec Soft-Close 1-3/8 inch Wrap Mount 45MM Hinge (Replacement for 830-13, 830-15, 830-20 ** See Details)
Product Discontinuation AlertThis item has left our catalog. It's either upgraded to a newer model, didn't meet our high customer satisfaction standards, or the manufacturer said goodbye. But don't worry, CabinetParts is always here with top-notch alternatives.
All the product info you could ask for...
-
Size Info
- Bore Diameter : 35MM
- Cup Depth : 7/16"
- Overlay : 1-3/8"
-
Manufacturer Info
- Manufacturer : Grass
- Manufacturer Part # : 04548-15
-
Other Important Info
- Cabinet Application : Face Frame
- Closing Type : Soft Closing
- Degree of Opening : 108
- Material : Metal
- Mounting Type : Screw On
- Product Finish : Nickel-Plated
- Product Type : Hinge & Plate: European Face Frame
- Includes : (1) Hinge & Plate Assembly
- Replacement for : **830-13, 830-15, 830-20. The two screw holes that fasten the hinge will not line up with your existing screw holes, and new holes will have to be drilled. The hinge and base plate (one piece now) will work fine.
