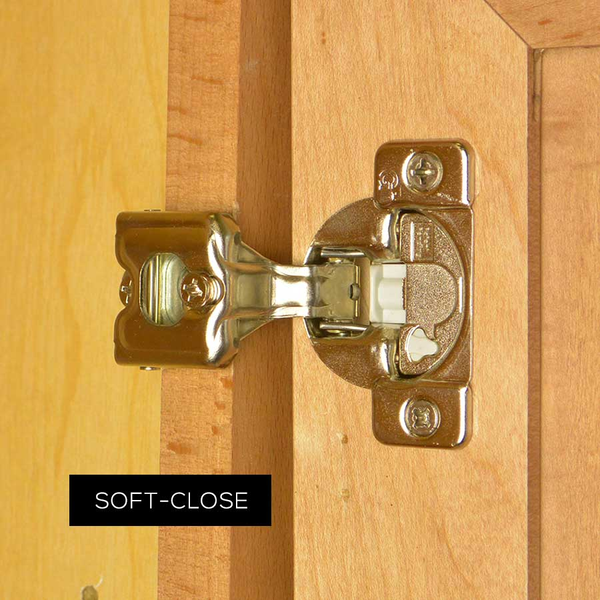

TEC 1 Inch Overlay/108-Degree Opening Soft Close Hinge, Replaces Grass 830 Series, Wrap Mounted with 45mm Drilling Pattern

  Rating 4.6 | 2,223 Reviews in the past 24 months | Our Item Number GHA04441

The Grass TEC 863 Series hinge is a high-quality option for face frame cabinets, offering durability, smooth operation, and easy installation. As a one-piece compact hinge, it eliminates the need for a separate mounting plate, simplifying installation. However, selecting the correct overlay is crucial for proper fit and door alignment. Unlike older two-piece hinge systems like the Grass 830 Series, where the overlay was determined by the mounting plate, the TEC 863 has a built-in, fixed overlay. Choosing the wrong overlay can lead to misalignment, so it’s important to determine yours before purchasing. You can check your existing hinge’s mounting plate for an engraved fraction (e.g., 1/2", 5/8"), which indicates the overlay, or measure manually by closing the door and measuring from the edge of the door to the edge of the cabinet opening. The TEC 863 features soft-close technology, ensuring a quiet and controlled close every time. With its 108° opening angle, it provides excellent accessibility while maintaining a sleek, modern design. For smooth, reliable performance, the Grass TEC 863 is an excellent choice—just be sure to select the correct overlay for a perfect fit!

$
4.02
$3.90/ea for 300
$5.74
SAVE 30%
Ends Jun 30

Closing Type:

Overlay:

Product Info Hinge Screw Spacing: 45mm, Bore Diameter: 35MM, Cup Depth: 7/16", Overlay: 1", Closing Type: Soft Closing, See more product details
Helpful Tip TIP: HINGES ARE COMPLICATED: Use our FREE TOOL to buy the correct hinge and mounting plate. Start Now
Order Qty:
  or
PRO Packs ™
Save more! Buy a Pro Pack.



Large Project?

Orders $2500+ Qualify for Special Discounts.

Build your item list and get a Quick Quote

view bid cart
Compare this item

All the product info you could ask for...

  • Size Info

  • Hinge Screw Spacing : 45mm
  • Bore Diameter : 35MM
  • Cup Depth : 7/16"
  • Overlay : 1"

  • Manufacturer Info

  • Manufacturer Part # : 04441A-15
  • Manufacturer : Grass

  • Other Important Info

  • Cabinet Application : Face Frame
  • Closing Type : Soft Closing
  • Degree of Opening : 108
  • Material : Metal
  • Mounting Type : Screw On
  • Product Finish : Nickel-Plated
  • Product Type : Hinge & Plate: European Face Frame
  • Includes : (1) Hinge & Plate Assembly
  • Replacement for : **830-29, 830-37, 830-53. The two screw holes that fasten the hinge will not line up with your existing screw holes, and new holes will have to be drilled. The hinge and base plate (one piece now) will work fine.

  • Alt Numbers for this Product

  • 04441-15,

  • Manufacturer Resources

Back to Top
back to top

Our customers say Grass products...

  4.6 out of 5
based on 2223 ratings

"These reviews are from our customers who have purchased Grass products."
  • 5 of 5 Easy February 19th, 2026
    by Warren from Highlands Ranch, CO

    Ordering was easy. Received products in a timely manner.

    Was this review helpful? yes no

  • 3 of 5 Slow closing August 20th, 2025
    by Rocco from Nedrow, NY

    Does not pull door closed till the the last 15 dogs. Very slow.

    Was this review helpful? yes no

  • 4 of 5 Hinges Appear to be HighQuality July 8th, 2025
    by John from Allentown, PA

    Have not had the chance to install the hinges yet. The hinges look good. I have a six foot high panty door that keeps breaking the center hinge. This is caused by a slight warp that bows our in the center of the door. I'm anxious to replace the old hinges with the neww TEC 1 series and see how it stands up to the stress.

    Was this review helpful? yes no

  • 4 of 4 people found the following review helpful
    3 of 5 Replacement Hinge August 6th, 2018
    by SUSAN from GERMANTOWN, TN

    I ordered these replacement hinges because they were supposed to line up with the existing hinges (holes, etc.) and work just like the previous hinge. Didn't work. Required drilling new holes and still didn't work. Doesn't line up at all. I'm glad I only ordered 4, so I'm only out that money. Would've been great, had they worked. I would've ordered more.

    Was this review helpful? yes no

  • 1 of 1 people found the following review helpful
    4 of 5 replacement hinges December 12th, 2022
    by JW from Rockingham, VA

    They work and fit fine, but it took an expert over 1 and 1/2 hours to install five hinges (continuous trial and error screwing and unscrewing, taking the hinges on and off) to get them to hang the door squarely and work properly. In this space age, can't you make something that is simpler to install?

    Was this review helpful? yes no
