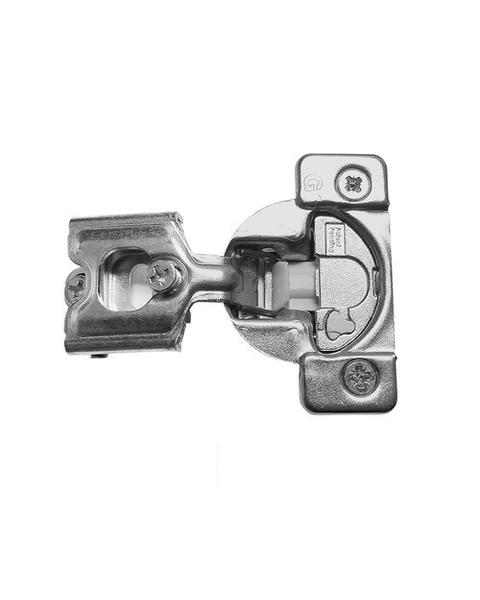

TEC 1/2 Inch Overlay/108-Degree Opening Soft Close Hinge, Wrap Mounted with 42mm Drilling Pattern
Ends Jun 12
Save more! Buy a Pro Pack.
Large Project?
Orders $2500+ Qualify for Special Discounts.
Build your item list and get a Quick Quote
view bid cartAll the product info you could ask for...
-
Size Info
- Hinge Screw Spacing : 42mm
- Bore Diameter : 35MM
- Cup Depth : 7/16"
- Overlay : 1/2"
-
Manufacturer Info
- Manufacturer Part # : 02749A-15
- Manufacturer : Grass
-
Other Important Info
- Cabinet Application : Face Frame
- Closing Type : Soft Closing
- Degree of Opening : 108
- Material : Metal
- Mounting Type : Dowel
- Product Finish : Nickel Plated
- Product Type : Hinge & Plate: European Face Frame
- Includes : (1) Hinge & Plate Assembly
- Replacement for : **830-38, 830-41, 830-68. The two screw holes that fasten the hinge will not line up with your existing screw holes, and new holes will have to be drilled. The hinge and base plate (one piece now) will work fine.
- Installation Note : Includes dowels for 3-hole pre-bore; remove for screw-on. #6 × 5/8" flat-head screws required.
-
Alt Numbers for this Product
- 02749-15,
Manufacturer Resources
Installation Hardware
Add-on Accessories
Other - 108 Degree Face Frame European Cabinet Hinges
Our customers say Grass products...
based on 66 ratings
- 5 of 5 Great hinges. September 18th, 2025
by Andrey from Monroe, NYI have grass brand regular hinges. Bought this brand to add a soft close feature. It was easy replacement, minor adjustments needed. Works as advertised.
- 5 of 5 Replacement cabinet hinges February 20th, 2025
by Elena from Melvindale, MII ordered the new kitchen cabinets hinges to replace the old Grass brand that I have now. I have not installed them yet but I tried to replace one of them and it seems like it fit perfectly. I'm very satisfied with the price and service, they came on time. Thank you!
- 3 of 4 people found the following review helpful
5 of 5 helped me replace discontinued hinges April 10th, 2015
by marie from Petersburg, OHThey helped me substitute my 15 year old discontinued hinge with one that will work. Very prompt and courteous.
- 2 of 2 people found the following review helpful
4 of 5 Grass Tec Soft-close hinges April 21st, 2017
by dan from ASHLAND, WII wanted to update the kitchen hinges. I read how to measure for replacement & documented the hinges I had at the time. I emailed cabinet parts.com to ask fir the proper replacement. They responded right away & I ordered enuff to replace them all, plus to have extras if needed. The hinges were shipped right away & I am very pleased with the results. My wife really likes them too. The one concern or issue is that all of the hinges had to be adjusted to the max & a few barely covered the handle side of the cabinets. Seems that there should be more adjustment room than what they have. Other than that we are happy!
- 2 of 2 people found the following review helpful
5 of 5 Fit the Bill March 29th, 2016
by Chester from Sarnia, onIt was an exact replacement for my original Tec hinges, but with the added feature of Soft-close. The WEB site was easy to navigate and readily helped me find what I was after. Chet Latawiec
Reviews about us...
- 5 of 5 | June 2nd, 2026
I have strange hinges and Cabinet Parts made it very easy to find the correct parts. I highly recommend them.
- 5 of 5 | June 1st, 2026
They went above and beyond to replace items damaged in shipping.
- 5 of 5 | June 1st, 2026
Everything came as ordered. No issues with the quality of the finish or the mechanics of the hardware.
- 5 of 5 | June 1st, 2026
The hinges I purchases worked great just one or two minor adjustment to my doors and insatallayionnwas simple.
- 4 of 5 | May 31st, 2026
Initially there was a problem with the quantity of items delivered, but they promptly responded and I received my full order.
