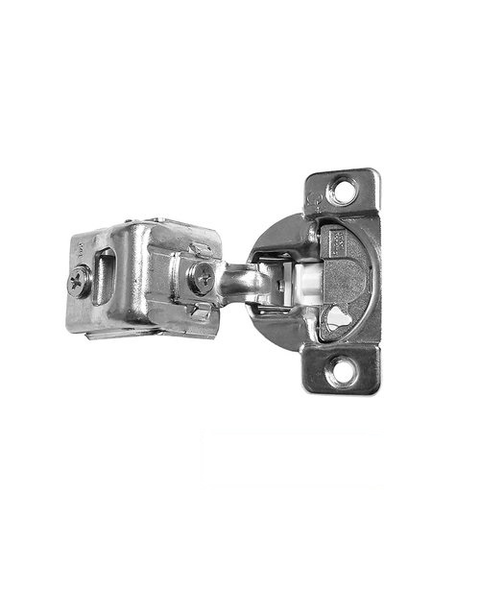

TEC 863- 1-1/4 Inch Overlay/108-Degree Opening Soft Close Hinge, Replaces Grass 830 Series, Wrap Mounted with 42mm Drilling Pattern

  Rating 4.6 | 2,223 Reviews in the past 24 months | Our Item Number GHA02838

The Grass TEC 863 Series hinge is a high-quality option for face frame cabinets, offering durability, smooth operation, and easy installation. As a one-piece compact hinge, it eliminates the need for a separate mounting plate, simplifying installation. However, selecting the correct overlay is crucial for proper fit and door alignment. Unlike older two-piece hinge systems like the Grass 830 Series, where the overlay was determined by the mounting plate, the TEC 863 has a built-in, fixed overlay. Choosing the wrong overlay can lead to misalignment, so it’s important to determine yours before purchasing. You can check your existing hinge’s mounting plate for an engraved fraction (e.g., 1/2", 5/8"), which indicates the overlay, or measure manually by closing the door and measuring from the edge of the door to the edge of the cabinet opening. The TEC 863 features soft-close technology, ensuring a quiet and controlled close every time. With its 108° opening angle, it provides excellent accessibility while maintaining a sleek, modern design. For smooth, reliable performance, the Grass TEC 863 is an excellent choice—just be sure to select the correct overlay for a perfect fit!

$
3.86
$3.74/ea for 300
$5.51
SAVE 30%
Ends Jun 30

Closing Type:

Overlay:

Product Info Hinge Screw Spacing: 42 mm, Bore Diameter: 35mm, Cup Depth: 7/16", Overlay: 1-1/4", Closing Type: Soft Closing, See more product details
Helpful Tip TIP: HINGES ARE COMPLICATED: Use our FREE TOOL to buy the correct hinge and mounting plate. Start Now
Order Qty:
  or
PRO Packs ™
Save more! Buy a Pro Pack.



Large Project?

Orders $2500+ Qualify for Special Discounts.

Build your item list and get a Quick Quote

view bid cart
Compare this item

All the product info you could ask for...

  • Size Info

  • Hinge Screw Spacing : 42 mm
  • Bore Diameter : 35mm
  • Cup Depth : 7/16"
  • Overlay : 1-1/4"

  • Manufacturer Info

  • Manufacturer Part # : 02838A-15
  • Manufacturer : Grass

  • Other Important Info

  • Cabinet Application : Face Frame
  • Closing Type : Soft Closing
  • Degree of Opening : 108
  • Material : Metal
  • Mounting Type : Dowel
  • Product Finish : Nickel Plated
  • Product Type : Hinge & Plate: European Face Frame
  • Includes : (1) Hinge & Plate Assembly
  • Replacement for : **830-33. The two screw holes that fasten the hinge will not line up with your existing screw holes, and new holes will have to be drilled. The hinge and base plate (one piece now) will work fine.
  • Installation Note : Includes dowels for 3-hole pre-bore; remove for screw-on. #6 × 5/8" flat-head screws required.

  • Alt Numbers for this Product

  • 02838,

  • Manufacturer Resources

Back to Top
back to top

Our customers say Grass products...

  4.6 out of 5
based on 2223 ratings

"These reviews are from our customers who have purchased Grass products."
  • 5 of 5 Needed hinges, but had no idea how to start December 10th, 2025
    by Bradley from Milwaukee, WI

    this site helped me figure out what i needed to replace my broken cabinet door hinges -- I bought 2 different sizes to be safe, but I could have just believed them in the first place and gotten the one they recommended. Received them quickly and easily fixed my cabinets -- they now open all the way, and close completely. I know this sounds really minor, but from just a regular person, this made a HUGE difference. Thanks Cabinet Parts!!!

    Was this review helpful? yes no

  • 5 of 5 Great Hindge November 6th, 2024
    by SAM from Boca Raton, FL

    (no comment given)

    Was this review helpful? yes no

  • 4 of 5 Cabinet hinge August 12th, 2024
    by Daniel from Akeley, Mn

    The part ordered worked perfectly. I did have to re-drill two holes but that was explained when ordering. Most places don’t explain things like this when ordering and you’re expecting the exact same piece. Cabinet Parts explained that the hinge was discontinued and the replacement would need two holes drilled.

    Was this review helpful? yes no

  • 6 of 7 people found the following review helpful
    3 of 5 Need to redrill holes in cabinet door August 31st, 2022
    by Stacy from Charlottesville, VA

    This is a replacement hinge for 830-33 - the hinge itself and its soft close capabilities are great. However, you have to recut the mounting holes for the screws on the door though and remove the old anchors. They don't line up from the old 830-33 hinge.

    Was this review helpful? yes no

  • 2 of 2 people found the following review helpful
    4 of 5 Gotta Love Soft Close November 16th, 2019
    by Marissa from Cornelius, NC

    We recently repainted our cabinets and In the process of doing so, decided to switch out for soft close hinges. I was able to take pictures of our current hinges and the team help determine which soft close hinges were similar to the ones we had. Thankfully we did not have to drill any new holes in our cabinets. The hinges fit perfectly and screwed right in to the existing holes.The reason I docked one star is because the screw that held the hinges to the cabinet bases were all missing. Thankfully since I didn’t initially plan on switching to soft close, I had saved our old hinges and screws in baggies labeled with which door and cabinet base they attached to so I was able to reuse our old screws to attach each soft close hinge to the base. Maybe it was my oversight and they aren’t included, if so it seems very odd since the screws to attach them to the doors were included. These soft close hinges are wonderful though- don’t hesitate to purchase.
