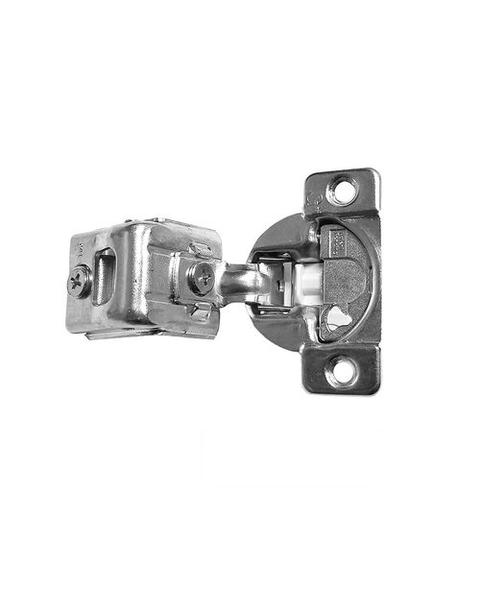

Loading from Primary Photo

TEC 863- 1-1/2 Inch Overlay/108-Degree Opening Soft Close Hinge, Replaces Grass 830 Series, Wrap Mounted with 45mm Drilling Pattern

  Rating 4.6 | 2,223 Reviews in the past 24 months | Our Item Number GHA04549

The Grass TEC 863 Series hinge is a high-quality option for face frame cabinets, offering durability, smooth operation, and easy installation. As a one-piece compact hinge, it eliminates the need for a separate mounting plate, simplifying installation. However, selecting the correct overlay is crucial for proper fit and door alignment. Unlike older two-piece hinge systems like the Grass 830 Series, where the overlay was determined by the mounting plate, the TEC 863 has a built-in, fixed overlay. Choosing the wrong overlay can lead to misalignment, so it’s important to determine yours before purchasing. You can check your existing hinge’s mounting plate for an engraved fraction (e.g., 1/2", 5/8"), which indicates the overlay, or measure manually by closing the door and measuring from the edge of the door to the edge of the cabinet opening. The TEC 863 features soft-close technology, ensuring a quiet and controlled close every time. With its 108° opening angle, it provides excellent accessibility while maintaining a sleek, modern design. For smooth, reliable performance, the Grass TEC 863 is an excellent choice—just be sure to select the correct overlay for a perfect fit!

$
3.76
$3.65/ea for 300
$5.37
SAVE 30%
Ends Jun 21

Closing Type:

Overlay:

Product Info Hinge Screw Spacing: 45mm, Bore Diameter: 35MM, Cup Depth: 7/16", Overlay: 1-1/2", Closing Type: Soft Closing, See more product details
Helpful Tip TIP: HINGES ARE COMPLICATED: Use our FREE TOOL to buy the correct hinge and mounting plate. Start Now
Order Qty:
  or
PRO Packs ™
Save more! Buy a Pro Pack.



Large Project?

Orders $2500+ Qualify for Special Discounts.

Build your item list and get a Quick Quote

view bid cart
Compare this item

All the product info you could ask for...

  • Size Info

  • Hinge Screw Spacing : 45mm
  • Bore Diameter : 35MM
  • Cup Depth : 7/16"
  • Overlay : 1-1/2"

  • Manufacturer Info

  • Manufacturer Part # : 04549A-15
  • Manufacturer : Grass

  • Other Important Info

  • Cabinet Application : Face Frame
  • Closing Type : Soft Closing
  • Degree of Opening : 108
  • Material : Metal
  • Mounting Type : Screw On
  • Product Finish : Nickel-Plated
  • Product Type : Hinge & Plate: European Face Frame
  • Includes : (1) Hinge & Plate Assembly
  • Replacement for : **830-14, 830-16, 830-40, 830-50. The two screw holes that fasten the hinge will not line up with your existing screw holes, and new holes will have to be drilled. The hinge and base plate (one piece now) will work fine.

  • Alt Numbers for this Product

  • 04549-15,

  • Manufacturer Resources

Back to Top
back to top

Our customers say Grass products...

  4.6 out of 5
based on 2223 ratings

"These reviews are from our customers who have purchased Grass products."
  • 5 of 5 These were exactly what I needed December 9th, 2025
    by Christine from Columbus, IN

    I hadn’t been able to find soft close hinges for my specific sized overlay in stores. These fit perfect and arrived quick. Bonus that they were very affordable.

    Was this review helpful? yes no

  • 5 of 5 Installer February 11th, 2025
    by William from Luzerne, MI

    Order came on time and fit as it should, too bad I'm having trouble getting my second order as no one can find part# 860-02 Grass I need 32 pieces.

    Was this review helpful? yes no

  • 5 of 5 These were the perfect replacement parts. January 17th, 2025
    by Jim from Los Angeles, CA

    I replaced all that I was told were bad, and these were the perfect replacement part for the old style because these were an upgrade to soft-close, from the slam type that were there before. If the homeowner would've counted them correctly, he would've had better results. We were only able to do 1/3 of the cabinets based on his count. Oh well, next time.

    Was this review helpful? yes no

  • 5 of 5 Amazing Company August 28th, 2024
    by Eileen from Clearwater, FL

    When trying to find new hinges for kitchen cabinets, I was at a loss but then stumbled on this company and could not have been more impressed with their customer service, and quality of products.

    Was this review helpful? yes no

  • 5 of 5 people found the following review helpful
    5 of 5 Perfect replacement part July 28th, 2015
    by Gary from Canon City, CO

    The replacement soft-close hinges work exactly as advertised. The replacement screw holes that attach to the cabinet door do not align exactly with the original holes, but some wood putty and an hours set time fixes that problem. Good replacement - no surprises.

    Was this review helpful? yes no
