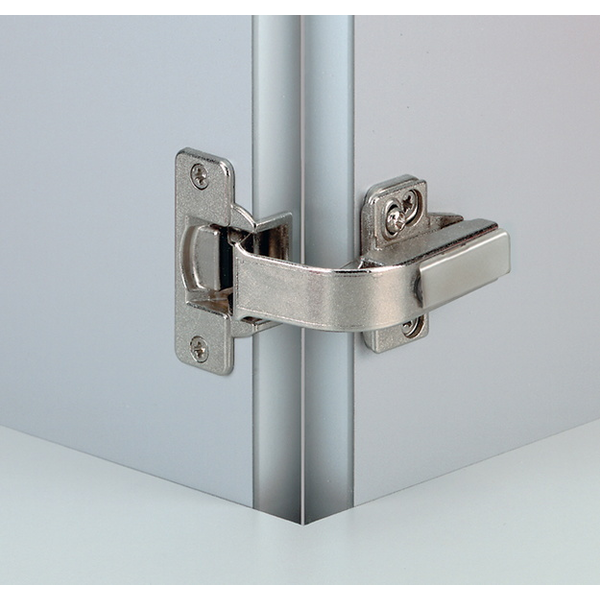

Nexis Dowelled 110 degree Pie Cut Corner Hinge, Self Close
Rating 4.7 | 58 Reviews | Our Item Number GHA148.700.01.0015
$
10.69
$10.37/ea for 50
$15.27
SAVE 30%
Ends Jun 30
Ends Jun 30
Product Info Bore Diameter: 35MM, Hinge Screw Spacing: 45MM, Cup Depth: 7/16", Degree of Opening: 110, Material: Die Cast, See more product details
or
Packs ™Save more! Buy a Pro Pack.
Large Project?
Orders $2500+ Qualify for Special Discounts.
Build your item list and get a Quick Quote
view bid cartAll the product info you could ask for...
-
Size Info
- Bore Diameter : 35MM
- Hinge Screw Spacing : 45MM
- Cup Depth : 7/16"
-
Manufacturer Info
- Manufacturer : Grass
- Manufacturer Part # : F015072653225
-
Other Important Info
- Overlay : Special Application
- Degree of Opening : 110
- Product Type : Long Arm Hinge
- Product Finish : Nickel Plated
- Cabinet Application : Frameless
- Material : Die Cast
- Mounting Type : Dowel
- Closing Type : Self Closing
- Note : For Pie Cut Corners
- Includes : (1) Hinge
- Installation Note : Includes dowels for 3-hole pre-bore; remove for screw-on. #6 × 5/8" flat-head screws required.
-
Alt Numbers for this Product
- 148.700.01.0015,
