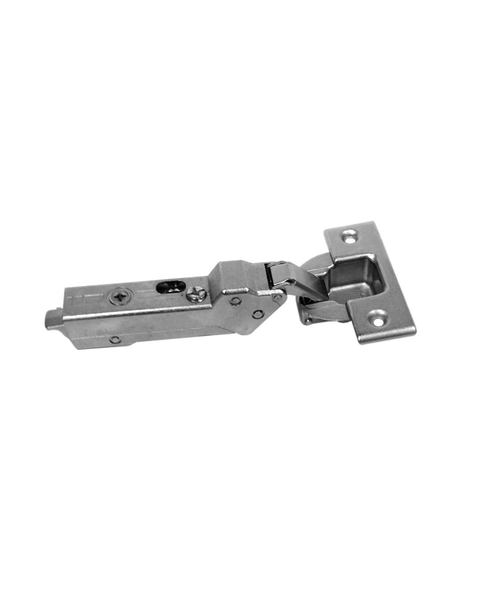

Loading from Primary Photo

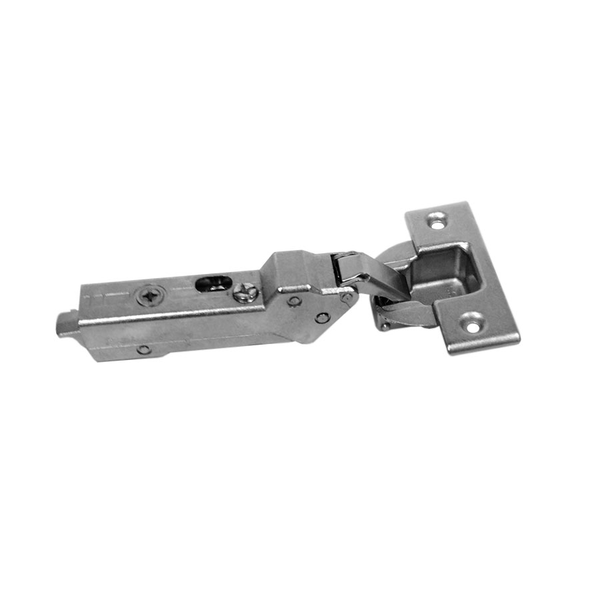

Grass Tiomos Partial Overlay Hinge Soft Close Hinge, 110 Degree Opening Angle, Screw-on Mounting (Replacement for 1006, 3703 ** See Details)

  Rating 4.5 | 282 Reviews in the past 24 months | Our Item Number GHA28138521

Experience premium performance with Grass Tiomos 110° and 120° hinges, built for smooth, quiet motion and precision adjustment. Featuring a 1/2" (12.6mm) cup depth, these hinges accommodate a wide range of door thicknesses. Overlay is easily adjusted by selecting from a variety of mounting plate heights, ensuring a perfect fit for any cabinet configuration. For added control in tight spaces, optional angle restriction clips limit the door opening to prevent over-extension. Tiomos hinges are available in soft-close and self-closing versions, and combine flexibility and durability in one sleek solution.

$
8.10
$7.86/ea for 150
$11.57
SAVE 30%
Ends Jun 30

Degree of Opening / Overlay:

Mounting Type / Closing Type:

Product Info Hinge Screw Spacing: 45MM, Bore Diameter: 35MM, Cup Depth: .50", Material: Steel, Mounting Type: Screw On, See more product details
Helpful Tip TIP: HINGES ARE COMPLICATED: Use our FREE TOOL to buy the correct hinge and mounting plate. Start Now
Order Qty:
  or
PRO Packs ™
Save more! Buy a Pro Pack.



Large Project?

Orders $2500+ Qualify for Special Discounts.

Build your item list and get a Quick Quote

view bid cart
Compare this item

All the product info you could ask for...

  • Size Info

  • Hinge Screw Spacing : 45MM
  • Bore Diameter : 35MM
  • Cup Depth : .50"

  • Manufacturer Info

  • Manufacturer : Grass
  • Manufacturer Part # : F028138521228

  • Other Important Info

  • Material : Steel
  • Mounting Type : Screw On
  • Cabinet Application : Frameless
  • Closing Type : Soft Closing
  • Note : Warning: Tiomos Series Mounting Plate Required for Installation
  • Includes : (1) Hinge
  • Degree of Opening / Overlay : 110 Degree / Partial Overlay
  • Overlay : Partial Overlay
  • Degree of Opening : 110
  • Product Type : Long Arm Hinge
  • Mounting Type / Closing Type : Screw On / Soft Closing
  • Product Finish : Nickel Plated
  • Replacement for : **3704. The two screw holes that fasten the hinge will not line up with your existing screw holes, and new holes will have to be drilled. The hinge and base plate (one piece now) will work fine.

  • Manufacturer Resources

Back to Top
back to top

Our customers say Grass products...

  4.5 out of 5
based on 282 ratings

"These reviews are from our customers who have purchased Grass products."
  • 5 of 5 Easy! December 23rd, 2024
    by Mark from Oklahoma City, OK

    It was easy to find what I needed and also easy to order. The purchased item were shipped out immediately.

    Was this review helpful? yes no

  • 4 of 5 New hinges to repair cabinets. October 17th, 2024
    by Harlan from Fayetteville, NY

    (no comment given)

    Was this review helpful? yes no

  • 4 of 5 Can't replace old Grass hinges with the new soft close Tiomos July 17th, 2024
    by Michael from Pittsfield, ME

    I ordered the correct hinge type on my second attempt, my fault, When I started to replace e the old base plate with the new, the holes didn't align. I loved the clip on functionality and dampening g a ton of the new hinge but couldn't use it without plugging the old baseplate holes and refilling. I'm not confident that I could do a credits le job.

    Was this review helpful? yes no

  • 5 of 5 Airstream cabinet hinges July 5th, 2024
    by Paul from Fort Collins, CO

    Cabinet parts.com was extremely easy to use and find the hinges I needed for my Airstream. Shipped right away, and had things repaired quickly, everything worked as it should. Highly recommend.

    Was this review helpful? yes no

  • 5 of 5 Makes Wayfair better September 6th, 2023
    by Brent from Bellevue, WA

    We ordered a large cabinet from Wayfair and did not open the box for 60 days. When we did, and completely unpacked the unit for assembly, we found the hinges to be bent and very flimsy. Since you only have 30 days to inspect with Wayfair, they would not even let us buy hinges that they send for free within 30 days. Turned out to be a good thing. The tool for determining the correct hinges is fantastic and the hinges we bought are strong and will last much longer than the originals. We will be replacing hinges in kitchen cabinets next!

    Was this review helpful? yes no

See More Reviews

Reviews about us...

  • 5 of 5 | June 19th, 2026

    Ordered the wrong parts and they were great fixing my issue. Will be my go to from now till on

  • 5 of 5 | June 19th, 2026

    Good service. Had parts i needed in couple of days.

  • 5 of 5 | June 19th, 2026

    Tried finding the hinges elsewhere. Found them right away. Perfect match.

  • 4 of 5 | June 18th, 2026

    I was able to find the exact hinge needed to replace broken hidden Soss hinges in a Martha Washington cabinet. The price was reasonable. It did take a while to ship out (ordered May 15, shipping notice June 2) but then arrived quickly once shipped.

  • 5 of 5 | June 18th, 2026

    I have looked and looked for replacement parts for my cabinets and was about to give up hope, but thankfully they had the exact parts I needed. They arrived quickly, reasonably priced and I am thrilled.

See More Reviews
