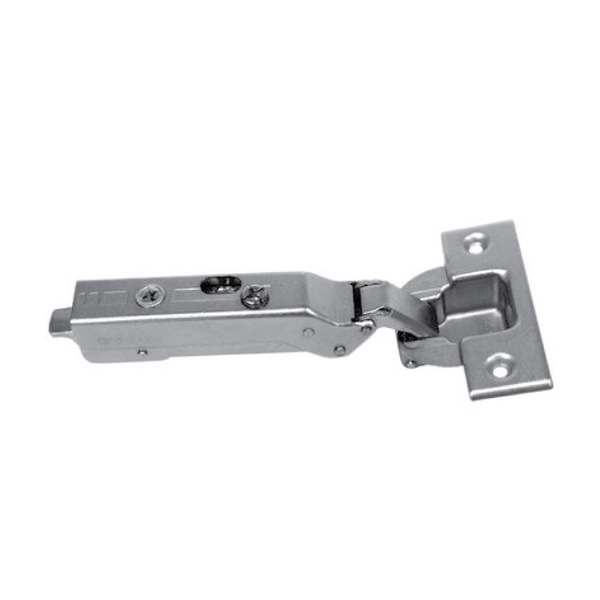

Grass Tiomos Standard Full Overlay Overlay Self-Close (Spring) Hinge, 110 Degree Opening Angle, Screw-on Mounting (Replacement for 3603, 1806 ** See Details)
Experience premium performance with Grass Tiomos 110° and 120° hinges, built for smooth, quiet motion and precision adjustment. Featuring a 1/2" (12.6mm) cup depth, these hinges accommodate a wide range of door thicknesses. Overlay is easily adjusted by selecting from a variety of mounting plate heights, ensuring a perfect fit for any cabinet configuration. For added control in tight spaces, optional angle restriction clips limit the door opening to prevent over-extension. Tiomos hinges are available in soft-close and self-closing versions, and combine flexibility and durability in one sleek solution.
Ends Aug 05
Degree of Opening / Overlay:
Mounting Type / Closing Type:
Save more! Buy a Pro Pack.
Large Project?
Orders $2500+ Qualify for Special Discounts.
Build your item list and get a Quick Quote
view bid cartAll the product info you could ask for...
-
Size Info
- Bore Diameter : 35MM
- Hinge Screw Spacing : 45MM
- Cup Depth : .50"
-
Manufacturer Info
- Manufacturer : Grass
- Manufacturer Part # : F045138458228
-
Other Important Info
- Cabinet Application : Frameless
- Degree of Opening / Overlay : 110 Degree / Standard Overlay
- Overlay : Full Overlay
- Degree of Opening : 110
- Product Type : Long Arm Hinge
- Mounting Type / Closing Type : Screw On / Self Closing
- Material : Steel
- Product Finish : Nickel Plated
- Mounting Type : Screw On
- Closing Type : Self Closing
- Includes : (1) Hinge
- Notes : Warning: Tiomos series baseplate required for use
- Replacement for : **1006, 3703. The two screw holes that fasten the hinge will not line up with your existing screw holes, and new holes will have to be drilled. The hinge and base plate (one piece now) will work fine.
Manufacturer Resources
-
Helpful Videos
-
How to Measure Your Cabinet Door Overlay -
How to update your Frame-less Cabinet Hinge -
How to Install Grass Tiomos Hinges
If Measured Overlay is 16-17MM (5/8"-11/16") use these Mounting Plates for Frameless Applications
If Measured Overlay is 13MM (1/2") use these Mounting Plates for Frameless Applications
If Measured Overlay is 6-6.5MM (1/4") use these Mounting Plates for Frameless Applications
If door is flush with Cabinet Box or Frame use these Mounting Plates for Frameless Inset Applications
If Measured Overlay is 16MM (5/8") use these Mounting Plates for Face Frame Applications
If Measured Overlay is 13MM (1/2") use these Mounting Plates for Face Frame Applications
