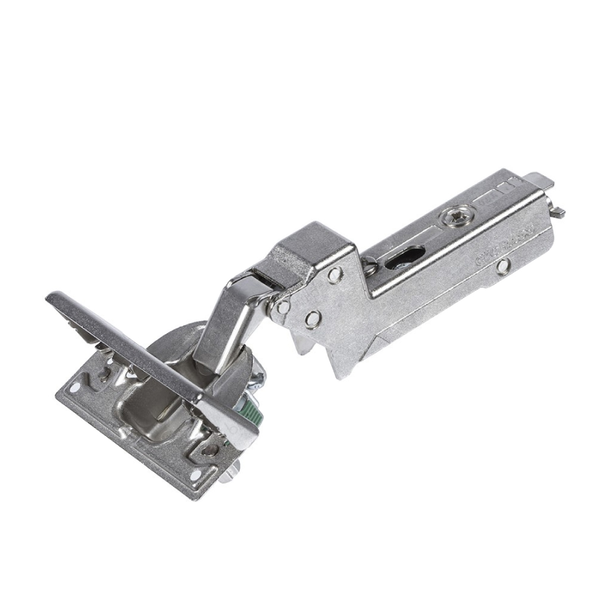

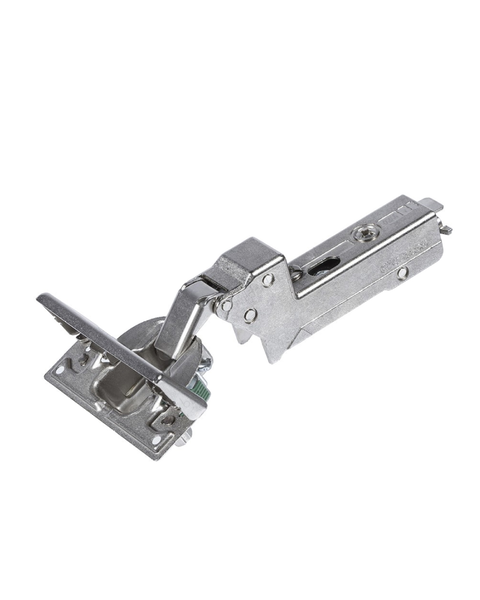

Tiomos Impresso 110 degree Inset Hinge, Soft Close
Ends Aug 05
Degree of Opening / Overlay:
Mounting Type / Closing Type:
Save more! Buy a Pro Pack.
Large Project?
Orders $2500+ Qualify for Special Discounts.
Build your item list and get a Quick Quote
view bid cartAll the product info you could ask for...
-
Size Info
- Bore Diameter : 35MM
- Cup Depth : .50"
- Installation Note : Set back mounting plate screw-on position by door thickness +1.5 mm.
- Installation Note : Tool-free install: Requires pre-bored Hinge cup + two 8 mm holes per manufacturer’s specs.
-
Manufacturer Info
- Manufacturer : Grass
- Manufacturer Part # : F017139417228
-
Other Important Info
- Degree of Opening : 110
- Product Type : Long Arm Hinge
- Degree of Opening / Overlay : 110 Degree / Inset
- Mounting Type / Closing Type : Tool Free / Soft Closing
- Material : Steel
- Product Finish : Nickel Plated
- Mounting Type : Impresso
- Closing Type : Soft Closing
- Sold : Each
- Notes : Warning: Tiamos series baseplate required for use
- Cabinet Application : Frameless
- Overlay : Inset
Manufacturer Resources
-
Helpful Videos
-
How to Measure Your Cabinet Door Overlay -
How to update your Frame-less Cabinet Hinge -
How to Install Grass Tiomos Hinges
Installation Hardware
If door is flush with Cabinet Box or Frame use these Mounting Plates for Frameless Inset Applications
Other - 110 Degree European Cabinet Hinges
Our customers say Grass products...
based on 283 ratings
- 3 of 3 people found the following review helpful
4 of 5 That's good stuff April 23rd, 2013
by Ryan from Paradise, CAThese hinges are very easy to install I'm really surprised how easy it was to get everything lined up perfectly. They are so adjustable. I ended up breaking off the 8mm studs and just putting small screws through those holes, it looks like that is an option and I feel a little more secure knowing it's held with a screw. The studs break off very easily and there is a hole that will fit a small screw right next to it so I assume this is a viable option then you are not faced with having to align perfectly the 35mm hole as well as 2 8mm holes (maybe there is a jig for this I don't know. My only complaint with the hinges is they seem a little weak on the self close, like you really have to get pretty close with the door before it will take over. At first it was really bugging me but now I'm getting pretty good at getting it close enough and it's not as big a deal. Now I find myself accidentally slamming all the doors I have that aren't self close. Self close is the way to go and definitely worth a couple extra bucks for the luxury.
- 1 of 1 people found the following review helpful
5 of 5 Hinge March 29th, 2016
by JAMIE from Prescott, MIVery easy to work with
- 0 of 1 people found the following review helpful
5 of 5 Perfect December 10th, 2013
by Neil from Seattle, WA(no comment given)
- 5 of 5 Perfect March 26th, 2013
by Steven from Patchogue, NY(no comment given)
- 4 of 5 Better Than Expected June 24th, 2026
by Robert from Williamsport, PAI was a bit concerned when I first started this project. Our existing cabinet hinges are over 25 years old, installed during our original kitchen remodel, and we had no original documentation for reference. The support team was excellent; they guided me through taking the necessary measurements and photos, and ultimately, they identified the perfect replacements. The hinges fit perfectly without the need for any additional drilling or adjustments. Thank you for the great support!
This review is about a different size/color of this item. (GHA28138519)
