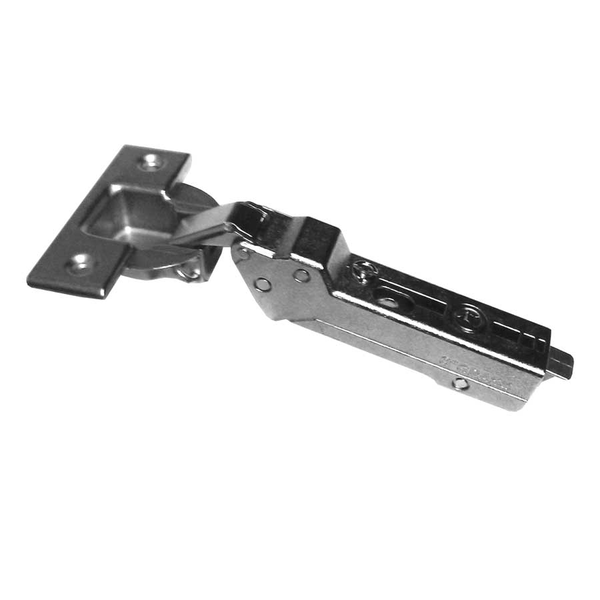

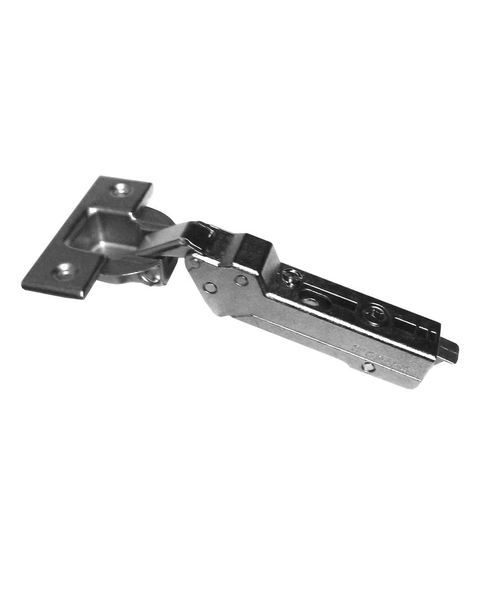

Grass Tiomos Partial Overlay Self-Close (Spring) Hinge, 110 Degree Opening Angle, Screw-on Mounting (Replacement for 3603, 1806 ** See Details)
Rating 4.5 | 282 Reviews | Our Item Number GHA45138459
Experience premium performance with Grass Tiomos 110° and 120° hinges, built for smooth, quiet motion and precision adjustment. Featuring a 1/2" (12.6mm) cup depth, these hinges accommodate a wide range of door thicknesses. Overlay is easily adjusted by selecting from a variety of mounting plate heights, ensuring a perfect fit for any cabinet configuration. For added control in tight spaces, optional angle restriction clips limit the door opening to prevent over-extension. Tiomos hinges are available in soft-close and self-closing versions, and combine flexibility and durability in one sleek solution.
$
4.49
$4.36/ea for 150
$6.41
SAVE 30%
Ends Jun 30
Ends Jun 30
Degree of Opening / Overlay:
Mounting Type / Closing Type:
Product Info Bore Diameter: 35MM, Hinge Screw Spacing: 45MM, Cup Depth: .50", Overlay: Partial Overlay, Degree of Opening: 110, See more product details
or
Packs ™Save more! Buy a Pro Pack.
Large Project?
Orders $2500+ Qualify for Special Discounts.
Build your item list and get a Quick Quote
view bid cartAll the product info you could ask for...
-
Size Info
- Bore Diameter : 35MM
- Hinge Screw Spacing : 45MM
- Cup Depth : .50"
-
Manufacturer Info
- Manufacturer : Grass
- Manufacturer Part # : F045138459228
-
Other Important Info
- Cabinet Application : Frameless
- Degree of Opening / Overlay : 110 Degree / Partial Overlay
- Overlay : Partial Overlay
- Degree of Opening : 110
- Product Type : Long Arm Hinge
- Mounting Type / Closing Type : Screw On / Self Closing
- Material : Steel
- Product Finish : Nickel Plated
- Mounting Type : Screw On
- Closing Type : Self Closing
- Includes : (1) Hinge
- Notes : Warning: Tiomos series baseplate required for use
- Replacement for : **3704. The two screw holes that fasten the hinge will not line up with your existing screw holes, and new holes will have to be drilled. The hinge and base plate (one piece now) will work fine.
Manufacturer Resources
-
Helpful Videos
-
How to Measure Your Cabinet Door Overlay -
How to update your Frame-less Cabinet Hinge -
How to Install Grass Tiomos Hinges
If Measured Overlay is 6-6.5MM (1/4") use these Mounting Plates for Frameless Applications
Tiomos Screw on Wing Frameless Mounting Plate 0MM Height If Measured Overlay is 3-3.5MM (1/8") use these Mounting Plates for Frameless Applications
Tiomos Screw on Wing Frameless Mounting Plate 3MM Height If door is flush with Cabinet Box or Frame use these Mounting Plates for Frameless Inset Applications
Tiomos Screw on Wing Frameless Mounting Plate 9.5MM Height If door is flush with Cabinet Box or Frame use these Mounting Plates for Face Frame Inset Applications
Tiomos Face Frame Inset Mounting Plate for Wood Screws, Full-Inset Door when used with Tiomos Partial Overlay Hinge , Nickel If Measured Overlay is 3-3.5MM (1/8") use these Mounting Plates for Face Frame Applications
Tiomos Face Frame Adapter Plate 3.5MM Height
Tiomos Face Frame Adapter Plate 3.5MM Height with Lip Installation Hardware
#6 x 5/8 inch Flat Head Hinge Screws (25 Pack)
Professional Self-Centering Vix Bit, Essential Drill Bit for Hinge Installation
#10 x 5/8 inch Pan Head Screws (25 Pack)
35MM Boring Bit Right Hand
Blum #2 Pozi Screwdriver for Hinge Adjustment and Installation Screws Other - 110 Degree European Cabinet Hinges
-
