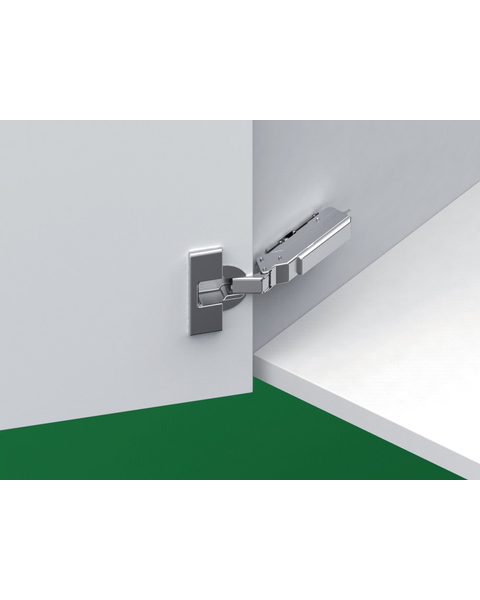

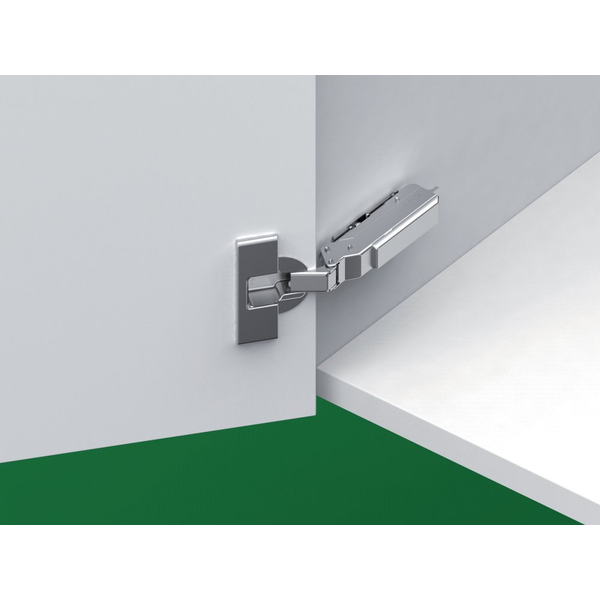

Grass Tiomos 110 Degree Opening Self-Close Inset Hinge, Screw-On Mounting, 42mm Hinge Screw Spacing

  Rating 4.6 | 1,029 Reviews in the past 24 months | Our Item Number GHA-F045138282228

Experience the precision of Grass Tiomos Hinges engineered for frameless cabinets with tool-free installation and a choice of press-fit or screw-on mounting. Offered in 110 Degrees, 120 Degrees, and 155 Degrees opening angles, these hinges support overlays up to 24 mm and use a standard 35 mm cup diameter. Available in models for 42 mm or 45 mm screw hole spacing, Tiomos comes in self-close (spring), soft-close (damper), and free-swinging versionsâ??perfect for touch-to-open systems. Premium performance meets modern flexibility.

$
4.99 Each
$4.84/ea for 150
$7.13
SAVE 30%
Ends Sep 19

Hinge Screw Spacing:

Overlay:

Mounting Type / Closing Type:

Product Info Hinge Screw Spacing: 42 mm, Side Adjustment: +/- 2 mm, Depth Adjustment: +/-2 mm, Collection: Tiomos, Closing Type: Self-close, See more product details
Helpful Tip TIP: HINGES ARE COMPLICATED: Use our FREE TOOL to buy the correct hinge and mounting plate. Start Now
Qty:       Each
  or
PRO Packs ™
Save more! Buy a Pro Pack.



Large Project?

Orders $2500+ Qualify for Special Discounts.

Build your item list and get a Quick Quote

view bid cart
Compare this item

All the product info you could ask for...

  • Size Info

  • Hinge Screw Spacing : 42 mm
  • Adjustments : 3-Way: Height, Side, Depth
  • Cup Drilling Depth : 12.6 mm
  • Cup Drilling Diameter : 35 mm
  • Further Adjustment : Height adjustment depending on mounting plate
  • Side Adjustment : +/- 2 mm
  • Height Adjustment : +/-2.5 mm
  • Depth Adjustment : +/-2 mm
  • Installation Note : Includes dowels for 3-hole pre-bore; remove for screw-on. #6 × 5/8" flat-head screws required. Door on cabinet without tools with clip system. Set back mounting plate screw-on position by door thickness +1.5 mm.

  • Manufacturer Info

  • Manufacturer : Grass
  • Manufacturer Part # : F045138282228

  • Other Important Info

  • Product Type : Concealed hinge
  • Degree of Opening / Overlay : 110 Degrees / Inset
  • Mounting Type / Closing Type : Dowelled / Self-close
  • Collection : Tiomos
  • Degree of Opening : 110 Degrees
  • Closing Type : Self-close
  • Key Features : Cup fixing: Without tools, with automatic closing spring, with soft closing mechanism
  • Area of Application : For Standard Applications
  • Mounting Type : Dowelled
  • Installation Note : Door on cabinet without tools with clip system
  • Overlay : Inset
  • Cranking : 19
  • For Door Material : Wood
  • Door Processing For Assembly : With Cup Drilling
  • Cup Material : Steel
  • Hinge Arm Material : Zinc alloy

  • Manufacturer Resources
