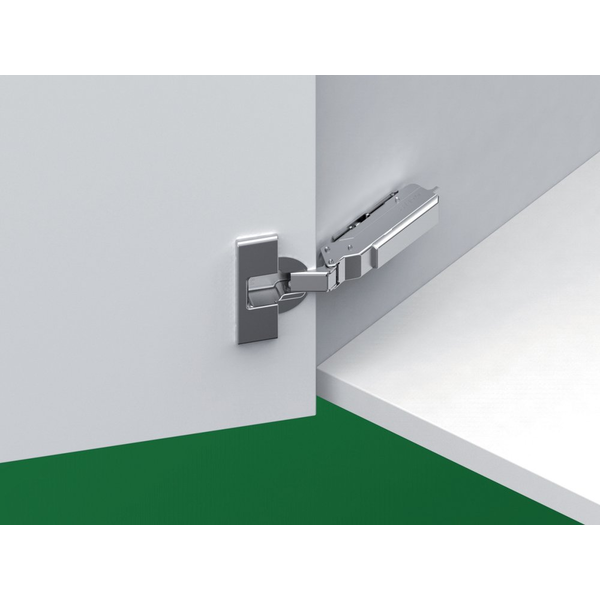

Grass Tiomos Push-To-Open Tipmatic Plus Full Overlay Hinge, 110-Degree Opening, Screw-On. Requires Push-to-Open/Touch Latch

  Rating 4.6 | 1,031 Reviews in the past 24 months | Our Item Number GHA-F046140360213

Grass Tiomos Tipmatic Plus hinges feature an integrated spring in the hinge arm for handle free door opening.Handle-Free operation requires Tipmatic Pin Push-to-Open device. Grass Tiomos hinges feature a 3-dimensional adjustment mechanism, and are compatible with all Tiomos base plates

$
7.49 Each
$7.27/ea for 150
$10.70
SAVE 30%
Ends Oct 25

Hinge Screw Spacing:

Overlay:

Product Info Hinge Screw Spacing: 45 mm, Side Adjustment: +/- 2 mm, Depth Adjustment: +/-2 mm, Collection: Tiomos, Mounting Type: Screw on, See more product details
Helpful Tip TIP: HINGES ARE COMPLICATED: Use our FREE TOOL to buy the correct hinge and mounting plate. Start Now
Qty:       Each
  or
PRO Packs ™
Save more! Buy a Pro Pack.



Large Project?

Orders $2500+ Qualify for Special Discounts.

Build your item list and get a Quick Quote

view bid cart
Compare this item

All the product info you could ask for...

  • Size Info

  • Hinge Screw Spacing : 45 mm
  • Adjustments : 3-Way: Height, Side, Depth
  • Cup Drilling Depth : 12.6 mm
  • Cup Drilling Diameter : 35 mm
  • Further Adjustment : Height adjustment depending on mounting plate
  • Side Adjustment : +/- 2 mm
  • Height Adjustment : +/-2.5 mm
  • Depth Adjustment : +/-2 mm

  • Manufacturer Info

  • Manufacturer Part # : F046140360213
  • Manufacturer : Grass

  • Other Important Info

  • Product Type : Concealed hinge
  • Collection : Tiomos
  • Degree of Opening : 110 Degrees
  • Closing Type : Tipmatic push-to-open
  • Key Features : Cup fixing: For screw fixing, with automatic closing spring, without soft closing mechanism
    Integrated spring assists Tipmatic Pin
  • Area of Application : For Standard Applications
  • Mounting Type : Screw on
  • Overlay : Full overlay
  • Cranking : 3
  • For Door Material : Wood
  • Door Processing For Assembly : With Cup Drilling
  • Cup Fixing : For Screw Fixing
  • Hinge Screw Spacing : 45/9.5
  • Cup Material : Steel
  • Hinge Arm Material : Steel
  • Installation Note : Door on cabinet without tools with clip system
