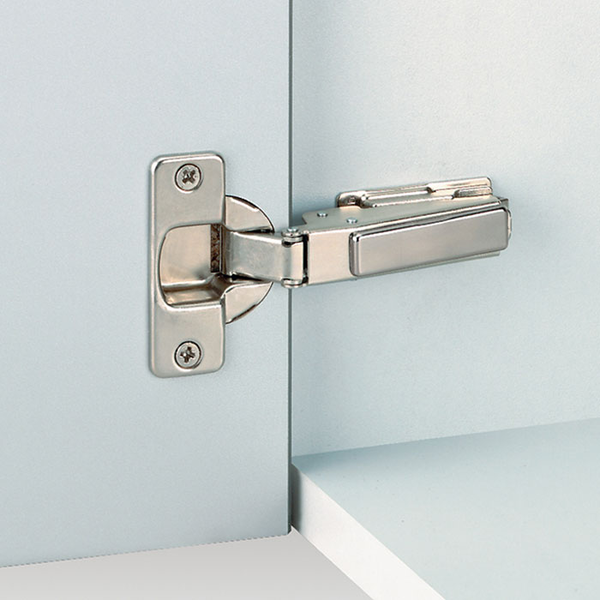

Nexis Screw On 95 degree Full Overlay Hinge, Self Close
Ends Nov 21
Save more! Buy a Pro Pack.
Large Project?
Orders $2500+ Qualify for Special Discounts.
Build your item list and get a Quick Quote
view bid cartAll the product info you could ask for...
-
Size Info
- Bore Diameter : 40MM
- Hinge Screw Spacing : 48MM
- Cup Depth : 7/16"
-
Manufacturer Info
- Manufacturer : Grass
- Manufacturer Part # : F015072820225
-
Other Important Info
- Product Finish : Nickel Plated
- Cabinet Application : Frameless
- Material : Steel
- Mounting Type : Screw On
- Closing Type : Self Closing
- Includes : (1) Hinge
- Overlay : Full Overlay
- Degree of Opening : 95
- Product Type : Long Arm Hinge
-
Alt Numbers for this Product
- 146.425.53.0015,
Manufacturer Resources
Installation Hardware
If Measured Overlay is 10MM (3/8") use these Mounting Plates for Frameless Applications
If Measured Overlay is 16-17MM (5/8"-11/16") use these Mounting Plates for Frameless Applications
If door is flush with Cabinet Box or Frame use these Mounting Plates for Frameless Inset Applications
If Measured Overlay is 16MM (5/8") use these Mounting Plates for Face Frame Applications
If Measured Overlay is 13MM (1/2") use these Mounting Plates for Face Frame Applications
If Measured Overlay is 18-19MM (11/16"-3/4") use these Mounting Plates for Frameless Applications
If Measured Overlay is 13MM (1/2") use these Mounting Plates for Frameless Applications
Other - 95 Degree European Cabinet Hinges
