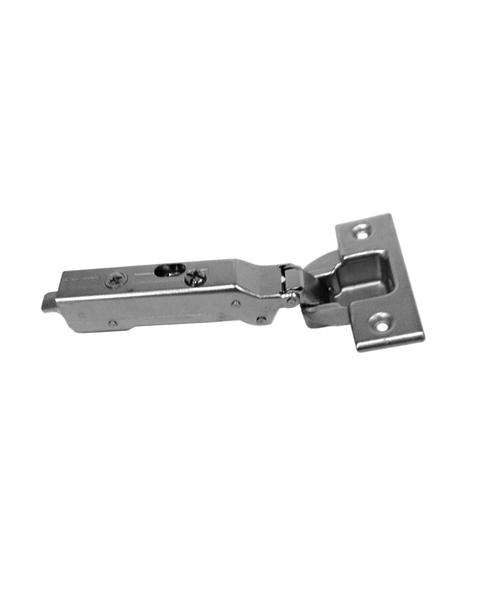

Loading from Primary Photo

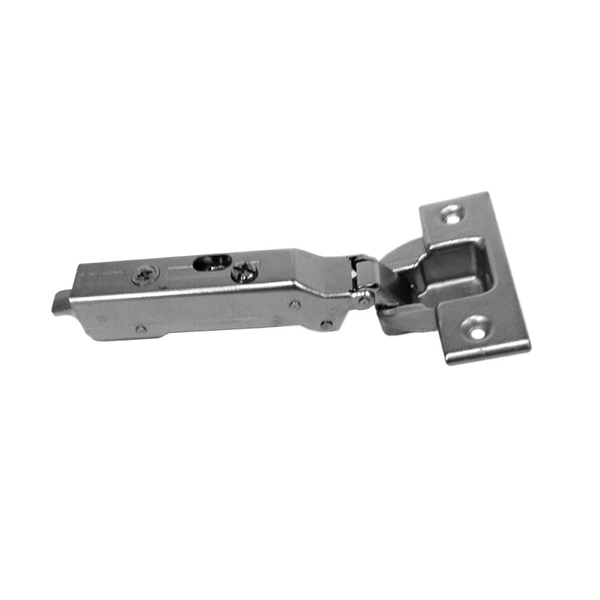

Grass Tiomos Full Overlay Soft Close Hinge, 95 Degree Opening Angle, Screw-on Mounting (Replacement for 3606, 1806 ** See Details)

  Rating 4.5 | 283 Reviews in the past 24 months | Our Item Number GHA28138567

Experience premium performance with Grass Tiomos 110° and 120° hinges, built for smooth, quiet motion and precision adjustment. Featuring a 1/2" (12.6mm) cup depth, these hinges accommodate a wide range of door thicknesses. Overlay is easily adjusted by selecting from a variety of mounting plate heights, ensuring a perfect fit for any cabinet configuration. For added control in tight spaces, optional angle restriction clips limit the door opening to prevent over-extension. Tiomos hinges are available in soft-close and self-closing versions, and combine flexibility and durability in one sleek solution.

$
8.99
$8.72/ea for 150
$12.84
SAVE 30%
Ends Aug 05

Degree of Opening / Overlay:

Mounting Type / Closing Type:

Product Info Bore Diameter: 35MM, Cup Depth: .50", Hinge Screw Spacing: 45MM, Material: Steel, Mounting Type: Screw On, See more product details
Helpful Tip TIP: HINGES ARE COMPLICATED: Use our FREE TOOL to buy the correct hinge and mounting plate. Start Now
Qty:
  or
PRO Packs ™
Save more! Buy a Pro Pack.



Large Project?

Orders $2500+ Qualify for Special Discounts.

Build your item list and get a Quick Quote

view bid cart
Compare this item

All the product info you could ask for...

  • Size Info

  • Bore Diameter : 35MM
  • Cup Depth : .50"
  • Hinge Screw Spacing : 45MM

  • Manufacturer Info

  • Manufacturer : Grass
  • Manufacturer Part # : F028138567228

  • Other Important Info

  • Product Finish : Nickel Plated
  • Material : Steel
  • Mounting Type : Screw On
  • Degree of Opening / Overlay : 95 Degree / Full Overlay
  • Cabinet Application : Frameless
  • Closing Type : Soft Closing
  • Note : Warning: Tiomos Series Mounting Plate Required for Installation
  • Includes : (1) Hinge
  • Overlay : Full Overlay
  • Mounting Type / Closing Type : Screw On / Soft Closing
  • Degree of Opening : 95
  • Product Type : Long Arm Hinge
  • Replacement for : **3606, 1806. The two screw holes that fasten the hinge will not line up with your existing screw holes, and new holes will have to be drilled. The hinge and base plate (one piece now) will work fine.

  • Manufacturer Resources

Back to Top
back to top

Our customers say Grass products...

  4.5 out of 5
based on 283 ratings

"These reviews are from our customers who have purchased Grass products."
  • 4 of 5 Better Than Expected June 24th, 2026
    by Robert from Williamsport, PA

    I was a bit concerned when I first started this project. Our existing cabinet hinges are over 25 years old, installed during our original kitchen remodel, and we had no original documentation for reference. The support team was excellent; they guided me through taking the necessary measurements and photos, and ultimately, they identified the perfect replacements. The hinges fit perfectly without the need for any additional drilling or adjustments. Thank you for the great support!

    This review is about a different size/color of this item. (GHA28138519)

    Was this review helpful? yes no

  • 3 of 5 Close but no cigar March 4th, 2026
    by Bernard from Yorktown Heights, New York

    The part itself is fine, but it is listed by the manufacturer as being a replacement for a discontinued older version, part #1006-30 manufactured by Grass. The new hinge in unfortunately too close to being a match, but not a match. The screw holes for mounting the part are half a screw width wider than those for the original part, so they cannot be used, and the overlap makes drilling new holes impossible. You would have to patch the prior mounting holes and then attempt to drill new ones half overlapping your fill. Like I said, close but no cigar, so I only recommend these hinges for new applications where they would be fine.

    This review is about a different size/color of this item. (GHA28138519)

    Was this review helpful? yes no

  • 1 of 5 Not Good February 12th, 2026
    by John from Rowlett, TX

    (no comment given)

    This review is about a different size/color of this item. (GHA45138500)

    Was this review helpful? yes no

  • 5 of 5 Wood-Mode replacement January 12th, 2026
    by Thomas from Endicott, NY, NY

    I bought these to replace broken MEPLA 652.320.55.00 hinges on my 35 year old Wood-Mode cabinets.

    This review is about a different size/color of this item. (GHA28138519)

    Was this review helpful? yes no

  • 4 of 5 happy November 30th, 2025
    by David from Santa Fe, NM

    The ordering was easy and shippment came on time

    This review is about a different size/color of this item. (GHA28138519)

    Was this review helpful? yes no

See More Reviews

Reviews about us...

  • 5 of 5 | July 29th, 2026

    Shipping was fast and I love the pulls! They matched with my existing knobs and gave me the look I was going for.

  • 5 of 5 | July 28th, 2026

    Purchase and delivery were easy and fast.

  • 5 of 5 | July 28th, 2026

    I realized they had sent a different part for one of my under mount latches. I called them and they sent the replacement part in just a couple of days.

  • 5 of 5 | July 28th, 2026

    Easy to install. They were heavier (150#) than the originals(100#) installed in 2006. Very easy to pull. Excellent. W. O. B.

  • 5 of 5 | July 27th, 2026

    Jonzee did a great job identifying the correct replacement hinges. The original design on the hinges is no longer available. The new replacement hinges required drilling new holes for the screws and routing out the 35MM hole to allow the hinge to open the
