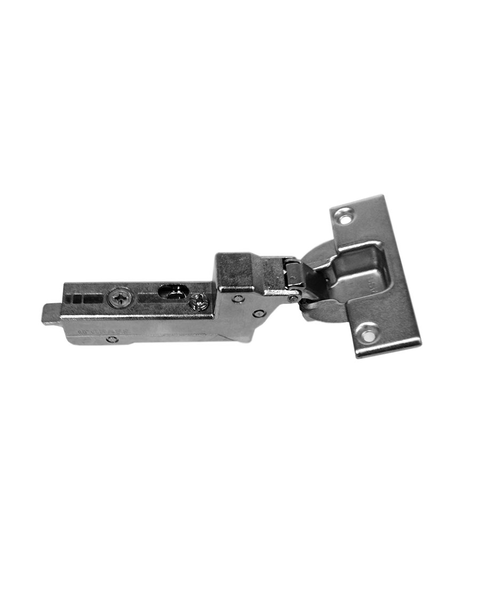

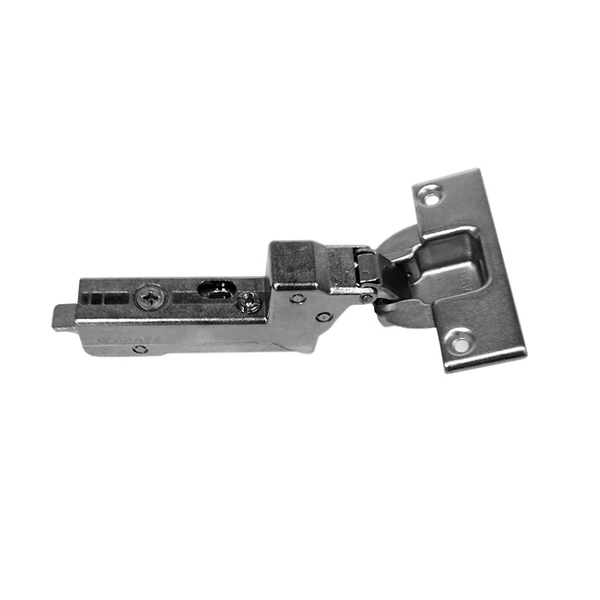

Grass Tiomos Full Inset Self-Close (Spring) Hinge, 95 Degree Opening Angle, Screw-on Mounting
Rating 4.5 | 285 Reviews | Our Item Number GHA45138508
Experience premium performance with Grass Tiomos 110° and 120° hinges, built for smooth, quiet motion and precision adjustment. Featuring a 1/2" (12.6mm) cup depth, these hinges accommodate a wide range of door thicknesses. Overlay is easily adjusted by selecting from a variety of mounting plate heights, ensuring a perfect fit for any cabinet configuration. For added control in tight spaces, optional angle restriction clips limit the door opening to prevent over-extension. Tiomos hinges are available in soft-close and self-closing versions, and combine flexibility and durability in one sleek solution.
$
5.49
$5.33/ea for 150
$7.84
SAVE 30%
Ends Nov 21
Ends Nov 21
Degree of Opening / Overlay:
Mounting Type / Closing Type:
Product Info Bore Diameter: 35MM, Cup Depth: .50", Hinge Screw Spacing: 45MM, Overlay: Inset, Degree of Opening: 95, See more product details
or
Packs ™Save more! Buy a Pro Pack.
Large Project?
Orders $2500+ Qualify for Special Discounts.
Build your item list and get a Quick Quote
view bid cartAll the product info you could ask for...
-
Size Info
- Bore Diameter : 35MM
- Cup Depth : .50"
- Hinge Screw Spacing : 45MM
- Installation Note : Set back mounting plate screw-on position by door thickness +1.5 mm.
-
Manufacturer Info
- Manufacturer : Grass
- Manufacturer Part # : F045138508228
-
Other Important Info
- Degree of Opening / Overlay : 95 Degree / Inset
- Mounting Type / Closing Type : Screw On / Self Closing
- Overlay : Inset
- Degree of Opening : 95
- Product Type : Long Arm Hinge
- Product Finish : Nickel Plated
- Material : Steel
- Mounting Type : Screw On
- Cabinet Application : Frameless
- Closing Type : Self Closing
- Note : Warning: Tiomos Series Mounting Plate Required for Installation
- Includes : (1) Hinge
